Product Information
ManufacturerEAO
Manufacturer Part No19-431.035
Newark Part No.30B4015
Product Range19 Series
Technical Datasheet
Pushbutton Switch TypeStandard
Product Range19 Series
Panel Cutout Diameter8mm
Contact ConfigurationSPST-NO
Switch OperationMomentary
Pushbutton Actuator StyleRound
Actuator / Cap Colour-
Contact Current AC Max100mA
Contact Current Max100mA
Contact Voltage AC Nom42V
Contact Voltage VAC50V
Contact Current DC Max-
Contact Voltage DC Nom42V
Contact Voltage VDC-
IP RatingIP40
Switch MountingPanel Mount
Switch TerminalsQuick Connect, Solder
Panel Cutout (H x W)-
SVHCNo SVHC (17-Jan-2023)
Product Overview

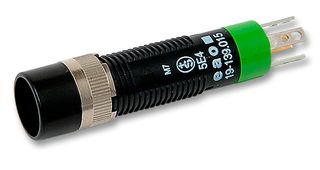

The 19-431.035 is a single-pole single-throw (SPST) illuminated Pushbutton Switch with a polyphenylene oxide actuator, gold contacts and solder terminal. The 19 series switch equipped with low level switching elements, momentary function and 1NO contact. The universal terminals of the low-level switching elements permit them to be mounted on printed circuit boards (PCB).
- Polycarbonate flat lens
- Raised design
Applications
Imaging, Video & Vision, Audio
Technical Specifications
Pushbutton Switch Type
Standard
Panel Cutout Diameter
8mm
Switch Operation
Momentary
Actuator / Cap Colour
-
Contact Current Max
100mA
Contact Voltage VAC
50V
Contact Voltage DC Nom
42V
IP Rating
IP40
Switch Terminals
Quick Connect, Solder
SVHC
No SVHC (17-Jan-2023)
Product Range
19 Series
Contact Configuration
SPST-NO
Pushbutton Actuator Style
Round
Contact Current AC Max
100mA
Contact Voltage AC Nom
42V
Contact Current DC Max
-
Contact Voltage VDC
-
Switch Mounting
Panel Mount
Panel Cutout (H x W)
-
Technical Docs (1)
Associated Products
5 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2023)
