I400S.
Current Probe, BNC Plug, Current Clamp, 400 A, 500 mA

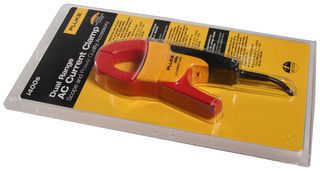

Image is for illustrative purposes only. Please refer to product description.
ManufacturerFLUKE
Manufacturer Part NoI400S.
Newark Part No.81R2656
Also Known As095969268585
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 4 week(s)
| Quantity | Price |
|---|---|
| 1+ | $520.000 |
Price for:Each
Minimum: 1
Multiple: 1
$520.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerFLUKE
Manufacturer Part NoI400S.
Newark Part No.81R2656
Also Known As095969268585
Technical Datasheet
Meter Side ConnectorBNC Plug
Probe Side ConnectorCurrent Clamp
Current Range Max400A
Current Range Min500mA
Product Range-
Product Overview
i400s current clamp is compatible with any instrument capable of ac millivolt measurements. It can accept a standard BNC connector, and has an input impedance of greater than or equal to 1Mohm in parallel with a maximum of 47pF. The Current Clamp can also be used with digital multimeters using a BNC-to-banana jack adapter.
- Companion to your scope or power quality meter to measure up to 400A AC
- Only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating
- Specially designed to offer maximum utility in a compact shape
- Take accurate current readings without breaking the circuit
- Soft non-slippery overmould handle
- Optional PM9081/001 BNC/Banana adapter for DMM's
- Two ranges: 40 A and 400 A, 10 and 1 mV/Amp output
- Max. conductor Ø 32 mm
Technical Specifications
Meter Side Connector
BNC Plug
Current Range Max
400A
For Use With
Fluke Digital Multimeters, Power Quality Analyzers & Portable Oscilloscopes
SVHC
No SVHC (15-Jun-2015)
Probe Side Connector
Current Clamp
Current Range Min
500mA
Product Range
-
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (15-Jun-2015)
