09062152871

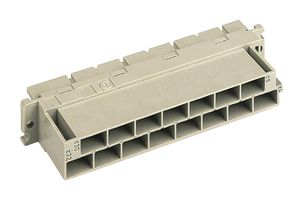

DIN 41612 Connector, Type 3C Series, 15 Contacts, Receptacle, 10.16 mm, 2 Row, z + d
Image is for illustrative purposes only. Please refer to product description.
ManufacturerHARTING
Manufacturer Part No09062152871
Newark Part No.93K7627
Product RangeType 3C Series
Technical Datasheet
8 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $13.120 |
| 10+ | $12.100 |
| 25+ | $12.100 |
| 50+ | $12.100 |
| 100+ | $12.100 |
Price for:Each
Minimum: 1
Multiple: 1
$13.12
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerHARTING
Manufacturer Part No09062152871
Newark Part No.93K7627
Product RangeType 3C Series
Technical Datasheet
Product RangeType 3C Series
No. of Contacts15Contacts
Pitch Spacing10.16mm
No. of Rows2 Row
Rows Loadedz + d
Contact PlatingSilver Plated Contacts
Contact MaterialCopper Alloy
No. of Mating Cycles500
SVHCNo SVHC (08-Jul-2021)
Product Overview
The 09062152871 is a 15-position 2-row Female DIN Power Connector with Faston termination, 10.16mm pitch. Type H15, straight orientation, with flange, copper alloy contacts. High current connectors in accordance with DIN IEC 60603-2 and optional coding systems to prevent incorrect mating. Made of thermoplastic and glass fiber reinforcement (30%).
- PL 1 according to IEC 61076-4-113 500 mating cycles
- UL94V-0 Flammability rating
Applications
Industrial, Logistics
Technical Specifications
Product Range
Type 3C Series
Gender
Receptacle
No. of Rows
2 Row
Contact Plating
Silver Plated Contacts
No. of Mating Cycles
500
No. of Contacts
15Contacts
Pitch Spacing
10.16mm
Rows Loaded
z + d
Contact Material
Copper Alloy
SVHC
No SVHC (08-Jul-2021)
