M50-3301042
IDC Connector, IDC Receptacle, Female, 1.27 mm, 2 Row, 20 Contacts, Cable Mount

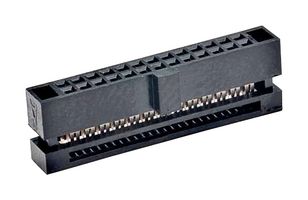

Image is for illustrative purposes only. Please refer to product description.
ManufacturerHARWIN
Manufacturer Part NoM50-3301042
Newark Part No.53W0954
Product RangeArcher M50 Series
Technical Datasheet
272 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown
| Quantity | Price |
|---|---|
| 1+ | $3.260 |
| 10+ | $2.790 |
| 25+ | $2.640 |
| 50+ | $2.440 |
| 100+ | $2.400 |
| 250+ | $2.360 |
| 500+ | $2.210 |
| 1000+ | $2.110 |
Price for:Each
Minimum: 1
Multiple: 1
$3.26
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerHARWIN
Manufacturer Part NoM50-3301042
Newark Part No.53W0954
Product RangeArcher M50 Series
Technical Datasheet
IDC Connector TypeIDC Receptacle
Contact GenderFemale
Pitch Spacing1.27mm
No. of Rows2 Row
No. of Contacts20Contacts
Connector MountingCable Mount
Contact MaterialPhosphor Bronze
Contact PlatingGold Plated Contacts
Product RangeArcher M50 Series
SVHCLead
Alternatives for M50-3301042
1 Product Found
Product Overview
The M50-3301042 is a 20-way 2-row Archer M50 Female IDC Connector with gold-plated phosphor bronze contacts, black PBT housing, 1.27mm pitch spacing and IDC/IDT termination. Polarized to prevent mismating. Secure cable retention with positive latching to header. Female IDC connector for use with 0.635mm pitch ribbon cable. Suitable for use with male vertical latching connectors. IDC contact for high speed termination.
- 3A Current rating
- 20mΩ Contact resistance
- 1000MΩ Insulation resistance
- 1000VAC/minute Dielectric voltage
Technical Specifications
IDC Connector Type
IDC Receptacle
Pitch Spacing
1.27mm
No. of Contacts
20Contacts
Contact Material
Phosphor Bronze
Product Range
Archer M50 Series
Contact Gender
Female
No. of Rows
2 Row
Connector Mounting
Cable Mount
Contact Plating
Gold Plated Contacts
SVHC
Lead
Technical Docs (3)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
