HBL2311
Power Entry Connector, 2P3W, L5-20, Power Entry, 20 A, Black, White, Nylon (Polyamide) Body, 125 V

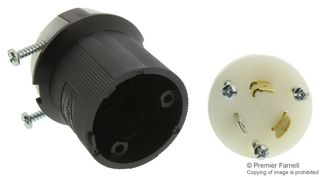

Image is for illustrative purposes only. Please refer to product description.
ManufacturerHUBBELL WIRING DEVICES
Manufacturer Part NoHBL2311
Newark Part No.81F2909
Product RangeTwist-Lock
Technical Datasheet
271 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $45.530 |
| 5+ | $41.180 |
| 10+ | $37.820 |
| 25+ | $35.050 |
| 50+ | $33.070 |
Price for:Each
Minimum: 1
Multiple: 1
$45.53
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerHUBBELL WIRING DEVICES
Manufacturer Part NoHBL2311
Newark Part No.81F2909
Product RangeTwist-Lock
Technical Datasheet
Connector TypePower Entry
Current Rating20A
Connector ColourBlack, White
Connector Body MaterialNylon (Polyamide) Body
Voltage Rating VAC125V
Product RangeTwist-Lock
SVHCNo SVHC (23-Jan-2024)
Product Overview
The HBL2311 is a Twist-Lock® 2-pole 3-wire 20A/125VAC Insulgrip® Grounding Plug with brass blades and clear polycarbonate terminal retainer. The ribbed nylon housing provides a secure grip and impact and chemical resistance. Superior cord grip design protects terminations from excess strain. Clear funnel shaped wire entry for ease of termination. Integral dust shield protects wiring chamber from dust or contaminants. It accepts #16 to #8AWG solid or stranded copper wire only and terminals identified in accordance with UL 498.
- IP20 Moisture resistance
- HB or better per UL94 or CSA 22.2 No. 0.6 Flammability rating
- -40 to 75°C Operating temperature range
Applications
Industrial
Technical Specifications
Connector Type
Power Entry
Connector Colour
Black, White
Voltage Rating VAC
125V
SVHC
No SVHC (23-Jan-2024)
Current Rating
20A
Connector Body Material
Nylon (Polyamide) Body
Product Range
Twist-Lock
Technical Docs (2)
Associated Products
4 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (23-Jan-2024)
