FS200R12PT4BOSA1

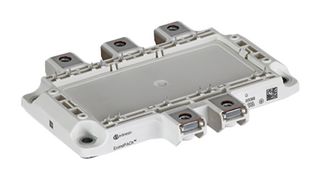

IGBT Module, Six Pack [Full Bridge], 280 A, 1.75 V, 1 kW, 150 °C, Module
Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoFS200R12PT4BOSA1
Newark Part No.51AH7929
Product RangeEconoPACK 4 Series
Technical Datasheet
2 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $190.330 |
| 5+ | $185.100 |
| 12+ | $179.880 |
| 30+ | $174.650 |
Price for:Each
Minimum: 1
Multiple: 1
$190.33
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerINFINEON
Manufacturer Part NoFS200R12PT4BOSA1
Newark Part No.51AH7929
Product RangeEconoPACK 4 Series
Technical Datasheet
IGBT ConfigurationSix Pack [Full Bridge]
DC Collector Current280A
Continuous Collector Current280A
Collector Emitter Saturation Voltage Vce(on)1.75V
Collector Emitter Saturation Voltage1.75V
Power Dissipation Pd1kW
Power Dissipation1kW
Operating Temperature Max150°C
Collector Emitter Voltage V(br)ceo1.2kV
Junction Temperature, Tj Max150°C
Transistor Case StyleModule
IGBT TerminationStud
Collector Emitter Voltage Max1.2kV
IGBT TechnologyIGBT 4 [Trench/Field Stop]
Transistor MountingPanel
Product RangeEconoPACK 4 Series
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
IGBT Configuration
Six Pack [Full Bridge]
Continuous Collector Current
280A
Collector Emitter Saturation Voltage
1.75V
Power Dissipation
1kW
Collector Emitter Voltage V(br)ceo
1.2kV
Transistor Case Style
Module
Collector Emitter Voltage Max
1.2kV
Transistor Mounting
Panel
SVHC
No SVHC (21-Jan-2025)
DC Collector Current
280A
Collector Emitter Saturation Voltage Vce(on)
1.75V
Power Dissipation Pd
1kW
Operating Temperature Max
150°C
Junction Temperature, Tj Max
150°C
IGBT Termination
Stud
IGBT Technology
IGBT 4 [Trench/Field Stop]
Product Range
EconoPACK 4 Series
