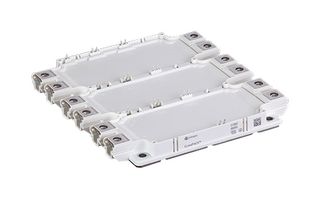

FS300R12OE4PNOSA1
IGBT Module, Six Pack [Full Bridge], 300 A, 1.75 V, 150 °C, Module
Image is for illustrative purposes only. Please refer to product description.
![INFINEON FS300R12OE4PNOSA1 IGBT Module, Six Pack [Full Bridge], 300 A, 1.75 V, 150 °C, Module](https://mexico.newark.com/productimages/standard/en_US/34AC1540-40.jpg)
ManufacturerINFINEON
Manufacturer Part NoFS300R12OE4PNOSA1Copy
Newark Part No.34AC1540
Product RangeEconoPACK+ Series
Your Part Number
Available to Order
Manufacturer Standard Lead Time: 16 week(s)
| Quantity | Price |
|---|---|
| 1+ | $343.470 |
| 8+ | $337.990 |
| 12+ | $332.490 |
| 28+ | $327.000 |
Price for:Each
Minimum: 1
Multiple: 1
$343.47
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerINFINEON
Manufacturer Part NoFS300R12OE4PNOSA1Copy
Newark Part No.34AC1540
Product RangeEconoPACK+ Series
Technical Datasheet
IGBT ConfigurationSix Pack [Full Bridge]
DC Collector Current300A
Continuous Collector Current300A
Collector Emitter Saturation Voltage1.75V
Collector Emitter Saturation Voltage Vce(on)1.75V
Power Dissipation Pd-
Power Dissipation-
Collector Emitter Voltage V(br)ceo1.2kV
Junction Temperature, Tj Max150°C
Operating Temperature Max150°C
Transistor Case StyleModule
IGBT TerminationSolder
Collector Emitter Voltage Max1.2kV
IGBT TechnologyIGBT 4 [Trench/Field Stop]
Transistor MountingPanel
Product RangeEconoPACK+ Series
SVHCTo Be Advised
Technical Specifications
IGBT Configuration
Six Pack [Full Bridge]
Continuous Collector Current
300A
Collector Emitter Saturation Voltage Vce(on)
1.75V
Power Dissipation
-
Junction Temperature, Tj Max
150°C
Transistor Case Style
Module
Collector Emitter Voltage Max
1.2kV
Transistor Mounting
Panel
SVHC
To Be Advised
DC Collector Current
300A
Collector Emitter Saturation Voltage
1.75V
Power Dissipation Pd
-
Collector Emitter Voltage V(br)ceo
1.2kV
Operating Temperature Max
150°C
IGBT Termination
Solder
IGBT Technology
IGBT 4 [Trench/Field Stop]
Product Range
EconoPACK+ Series
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:To be advised
SVHC:To Be Advised
