IFS100B12N3E4PB11BPSA1
IGBT Module, Six Pack [Full Bridge], 150 A, 2.1 V, 515 W, 150 °C, Module

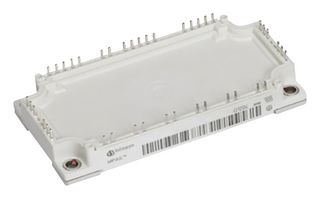

Image is for illustrative purposes only. Please refer to product description.
![INFINEON IFS100B12N3E4PB11BPSA1 IGBT Module, Six Pack [Full Bridge], 150 A, 2.1 V, 515 W, 150 °C, Module](https://mexico.newark.com/productimages/standard/en_US/29AM8482-40.jpg)
ManufacturerINFINEON
Manufacturer Part NoIFS100B12N3E4PB11BPSA1Copy
Newark Part No.29AM8482
Your Part Number
6 In Stock
Need more?
Delivery in 4-6 Business Days(UK stock)
Order before 6pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $112.470 |
| 5+ | $109.450 |
| 12+ | $106.300 |
| 30+ | $104.730 |
| 54+ | $103.200 |
| 102+ | $97.000 |
Price for:Each
Minimum: 1
Multiple: 1
$112.47
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerINFINEON
Manufacturer Part NoIFS100B12N3E4PB11BPSA1Copy
Newark Part No.29AM8482
Technical Datasheet
IGBT ConfigurationSix Pack [Full Bridge]
Continuous Collector Current150A
Collector Emitter Saturation Voltage2.1V
Power Dissipation515W
Operating Temperature Max150°C
Transistor Case StyleModule
IGBT TerminationSolder
Collector Emitter Voltage Max1.2kV
IGBT TechnologyIGBT 4 [Trench/Field Stop]
Transistor MountingPanel
Product Range-
SVHCNo SVHC (25-Jun-2025)
Technical Specifications
IGBT Configuration
Six Pack [Full Bridge]
Collector Emitter Saturation Voltage
2.1V
Operating Temperature Max
150°C
IGBT Termination
Solder
IGBT Technology
IGBT 4 [Trench/Field Stop]
Product Range
-
Continuous Collector Current
150A
Power Dissipation
515W
Transistor Case Style
Module
Collector Emitter Voltage Max
1.2kV
Transistor Mounting
Panel
SVHC
No SVHC (25-Jun-2025)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
