135-3403-101
RF / Coaxial Connector, MMCX Coaxial, Right Angle Plug, Solder, 50 ohm

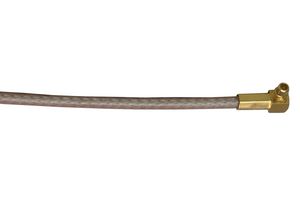

Image is for illustrative purposes only. Please refer to product description.
ManufacturerJOHNSON - CINCH CONNECTIVITY
Manufacturer Part No135-3403-101
Newark Part No.01F980
Technical Datasheet
62 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $6.590 |
| 10+ | $6.590 |
| 25+ | $6.590 |
| 50+ | $6.080 |
| 100+ | $6.080 |
| 250+ | $6.080 |
| 500+ | $6.080 |
Price for:Each
Minimum: 1
Multiple: 1
$6.59
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerJOHNSON - CINCH CONNECTIVITY
Manufacturer Part No135-3403-101
Newark Part No.01F980
Technical Datasheet
Connector TypeMMCX Coaxial
Connector Body StyleRight Angle Plug
Coaxial TerminationSolder
Impedance50ohm
Coaxial Cable TypeRG161, RG174, RG179, RG187, RG188, RG316
Contact MaterialBeryllium Copper
Contact PlatingGold Plated Contacts
Frequency Max6GHz
Connector MountingCable Mount
Product Range-
SVHCLead
Product Overview
The 135-3403-101 is a MMCX RF/Coaxial Connector with gold plated beryllium copper contact. This cable mount right angle crimp plug features captivated contact and solder termination. This right angle plug is suitable for use with RG161, RG174, RG179, RG187, RG188 and RG316 RG cables.
- 1000MΩ Minimum insulation resistance
- 500 Cycles minimum durability
- MIL-STD-202, Method 106 (N/A dummy loads) moisture resistance
Applications
Defence, Military & Aerospace
Technical Specifications
Connector Type
MMCX Coaxial
Coaxial Termination
Solder
Coaxial Cable Type
RG161, RG174, RG179, RG187, RG188, RG316
Contact Plating
Gold Plated Contacts
Connector Mounting
Cable Mount
SVHC
Lead
Connector Body Style
Right Angle Plug
Impedance
50ohm
Contact Material
Beryllium Copper
Frequency Max
6GHz
Product Range
-
Technical Docs (3)
Alternatives for 135-3403-101
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
