Test Accessory, Impedance, BNC, 40-110MHZ, Test Fixture

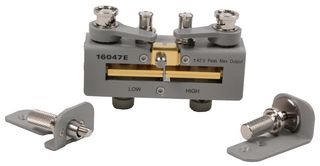

Image is for illustrative purposes only. Please refer to product description.
ManufacturerKEYSIGHT TECHNOLOGIES
Manufacturer Part No16047E
Newark Part No.95H8359
Technical Datasheet
Available to Order
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | $2,978.070 |
Price for:Each
Minimum: 1
Multiple: 1
$2,978.07
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerKEYSIGHT TECHNOLOGIES
Manufacturer Part No16047E
Newark Part No.95H8359
Technical Datasheet
Accessory TypeTest Fixture
For Use WithKeysight 4263B/4284A/85A/88A/94A/E4980A/81A LCR Meters, 4268A/79A/E4981A Capacitance Meters
Product Range-
SVHCNo SVHC (17-Jan-2023)
Product Overview
16047E is a test fixture designed for impedance evaluation of lead type devices up to 120MHz. A guard terminal is available for three terminal devices and a shorting plate comes secured on this fixture.
- 4-terminal pair, BNC connector
- 2-terminal DUT connection
- Applicable instruments: E4980A/AL, E4981A, E4990A, E5061B-3L3/3L4/3L5 with Opt. 005
- Frequency range from DC to 120MHz
- Maximum voltage of ±42V peak (AC+DC)
- Operating temperature range from –20 to 75°C
- Dimension (approx) is 5.314inch (W) x 1.574inch (H) x 2.559inch (D)
Contents
Test fixture, 1 x angle (right-side) 16047-01221, 1 x angle (left-side) 16047-01222, 4 x screws 0515-1229, 1 x shorting plate 16047-00621, 1 x operating and service manual 16047-90040.
Technical Specifications
Accessory Type
Test Fixture
Product Range
-
For Use With
Keysight 4263B/4284A/85A/88A/94A/E4980A/81A LCR Meters, 4268A/79A/E4981A Capacitance Meters
SVHC
No SVHC (17-Jan-2023)
