KPEG163
PIEZO TRANSDUCER, WIRE TYPE

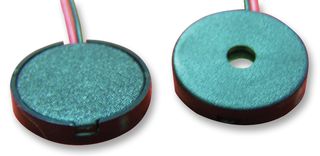

Image is for illustrative purposes only. Please refer to product description.
585 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $1.090 |
| 10+ | $0.859 |
| 25+ | $0.795 |
| 50+ | $0.731 |
| 100+ | $0.659 |
| 500+ | $0.587 |
| 1000+ | $0.508 |
| 2500+ | $0.475 |
Price for:Each
Minimum: 5
Multiple: 5
$5.45
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerKINGSTATE
Manufacturer Part NoKPEG163
Newark Part No.61M7043
Technical Datasheet
Transducer FunctionBuzzer
Supply Voltage Min-
Tones-
Sound Pressure Level (SPL)80dB
Supply Voltage Max30V
Resonant Frequency-
Operating Current Max10mA
Transducer MountingWire Leads
Drive Circuit-
Sound Level Distance10cm
Capacitance0.014µF
Sound Level Distance0
Lead Wire32AWG
IP Rating-
IP Rating-
Housing MaterialABS (Acrylonitrile Butadiene Styrene)
Operating Voltage Range30V p-p
Operating Temperature Min-30°C
Operating Temperature Max85°C
Product Range-
SVHCLead titanium zirconium oxide (23-Jan-2024)
Technical Specifications
Transducer Function
Buzzer
Tones
-
Supply Voltage Max
30V
Operating Current Max
10mA
Drive Circuit
-
Capacitance
0.014µF
Lead Wire
32AWG
IP Rating
-
Operating Voltage Range
30V p-p
Operating Temperature Max
85°C
SVHC
Lead titanium zirconium oxide (23-Jan-2024)
Supply Voltage Min
-
Sound Pressure Level (SPL)
80dB
Resonant Frequency
-
Transducer Mounting
Wire Leads
Sound Level Distance
10cm
Sound Level Distance
0
IP Rating
-
Housing Material
ABS (Acrylonitrile Butadiene Styrene)
Operating Temperature Min
-30°C
Product Range
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead titanium zirconium oxide (23-Jan-2024)
