KSSG13J12-N
BUZZER, MAGNETIC, SMD, 78DB, 3V

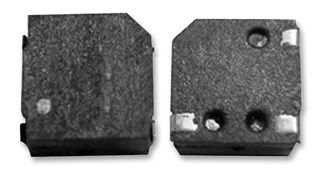

Image is for illustrative purposes only. Please refer to product description.
2,335 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $3.030 |
| 10+ | $2.540 |
| 25+ | $2.360 |
| 50+ | $2.190 |
| 100+ | $1.980 |
| 500+ | $1.810 |
| 1000+ | $1.590 |
| 2500+ | $1.450 |
Price for:Each
Minimum: 5
Multiple: 5
$15.15
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerKINGSTATE
Manufacturer Part NoKSSG13J12-N
Newark Part No.48W6021
Technical Datasheet
Transducer FunctionBuzzer
Supply Voltage Min2V
Tones-
Sound Pressure Level (SPL)78dBA
Supply Voltage Max4V
Resonant Frequency4kHz
Operating Current Max110mA
Transducer MountingSurface Mount
Drive Circuit-
Sound Level Distance10cm
Sound Level Distance0
Capacitance-
Lead Wire-
IP Rating-
IP Rating-
Housing MaterialLCP (Liquid Crystal Polymer)
Operating Voltage Range-
Operating Temperature Min-30°C
Operating Temperature Max70°C
Product Range-
SVHCLead titanium zirconium oxide (23-Jan-2024)
Technical Specifications
Transducer Function
Buzzer
Tones
-
Supply Voltage Max
4V
Operating Current Max
110mA
Drive Circuit
-
Sound Level Distance
0
Lead Wire
-
IP Rating
-
Operating Voltage Range
-
Operating Temperature Max
70°C
SVHC
Lead titanium zirconium oxide (23-Jan-2024)
Supply Voltage Min
2V
Sound Pressure Level (SPL)
78dBA
Resonant Frequency
4kHz
Transducer Mounting
Surface Mount
Sound Level Distance
10cm
Capacitance
-
IP Rating
-
Housing Material
LCP (Liquid Crystal Polymer)
Operating Temperature Min
-30°C
Product Range
-
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead titanium zirconium oxide (23-Jan-2024)
