632S TWIN DIVIDER
Foot Operated Switch, SPDT, Off-(On), 20 A, 250 V, 38.1 mm

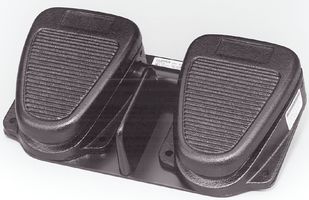

Image is for illustrative purposes only. Please refer to product description.
ManufacturerLINEMASTER
Manufacturer Part No632S TWIN DIVIDER
Newark Part No.04M4759
Technical Datasheet
67 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $262.860 |
| 5+ | $234.720 |
| 10+ | $217.920 |
| 25+ | $189.640 |
| 50+ | $170.470 |
| 100+ | $158.180 |
Price for:Each
Minimum: 1
Multiple: 1
$262.86
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerLINEMASTER
Manufacturer Part No632S TWIN DIVIDER
Newark Part No.04M4759
Technical Datasheet
Product Range-
Contact ConfigurationSPDT
Switch OperationOff-(On)
Contact Current Max20A
Contact Voltage AC Nom250V
External Height38.1mm
External Width88.9mm
External Depth114.3mm
SVHCNo SVHC (14-Jun-2023)
Product Overview
The 632S TWIN DIVIDER is a single-pole double-throw momentary Foot Switch with 1HP at 125 to 250VAC rating. Cast iron construction for long life, non-skid base pad, adjustable strain relief connector and durable black finish.
- Proven reliability
- Offers push on-push off action that insures long trouble-free performance
- 2 Holes provided for rigid mounting to floor or equipment
Applications
Industrial
Warnings
Use of foot controls on machinery lacking effective point of operation safeguards can cause serious injury to the operator.
Technical Specifications
Product Range
-
Switch Operation
Off-(On)
Contact Voltage AC Nom
250V
External Width
88.9mm
SVHC
No SVHC (14-Jun-2023)
Contact Configuration
SPDT
Contact Current Max
20A
External Height
38.1mm
External Depth
114.3mm
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (14-Jun-2023)
Download Product Compliance Certificate
Product Compliance Certificate
Product traceability
