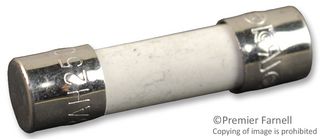

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | LITTELFUSE |
|---|---|
| Manufacturer Part No | 021506.3TXPCopy |
| Manufacturer Standard Lead Time | 17 weeks |
| Newark Part No. | 50M5544 |
| Product Range | 215 |
| Your Part Number | |
| Technical Datasheet |
6,967 In Stock
Need more?
Delivery in 4-6 Business Days(UK stock)
Order before 6pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $2.600 |
| 10+ | $2.000 |
| 25+ | $1.840 |
| 50+ | $1.670 |
| 100+ | $1.540 |
| 500+ | $1.280 |
| 1000+ | $1.190 |
| 2500+ | $1.170 |
Price for:Each
Minimum: 1
Multiple: 1
$2.60
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | LITTELFUSE |
|---|---|
| Manufacturer Part No | 021506.3TXPCopy |
| Manufacturer Standard Lead Time | 17 weeks |
| Newark Part No. | 50M5544 |
| Product Range | 215 |
| Technical Datasheet | |
| Blow Characteristic | Time Delay |
| Fuse Current | 6.3A |
| Voltage Rating VAC | 250V |
| Fuse Size Metric | 5mm x 20mm |
| Fuse Size Imperial | 0.2" x 0.79" |
| Product Range | 215 |
| Breaking Capacity Current AC | 1.5kA |
| SVHC | No SVHC (25-Jun-2020) |
Product Overview
The 021506.3TXP is a 6.3A/250VAC time delay anti-surge Cartridge Fuse with ceramic body, tin-plated copper leads and nickel-plated brass cap. Provides remarkable interrupting capacity. The 215-series cartridge fuse designed to International (IEC ) standards for use globally. Meets the IEC 60127-2, sheet 5 specification for time-lag fuses. Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
- 100mV Maximum voltage drop
- 4W Maximum power dissipation at 1.5ln
- 0.0108Ω Nominal cold resistance
- -55 to 125°C Operating temperature range
Applications
Safety
Technical Specifications
| Blow Characteristic | Time Delay |
|---|---|
| Voltage Rating VAC | 250V |
| Fuse Size Imperial | 0.2" x 0.79" |
| Breaking Capacity Current AC | 1.5kA |
| Fuse Current | 6.3A |
|---|---|
| Fuse Size Metric | 5mm x 20mm |
| Product Range | 215 |
| SVHC | No SVHC (25-Jun-2020) |
Technical Docs (2)
Associated Products
7 Products Found
Legislation and Environmental
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2020) |
