LSP10277P
Surge Protector, LSP10 Series, Mains Surge Protector, 1 Pole, Type 2, 20 kA, 320 VAC, Panel

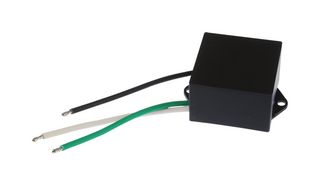

Image is for illustrative purposes only. Please refer to product description.
ManufacturerLITTELFUSE
Manufacturer Part NoLSP10277P
Newark Part No.83X6921
Product RangeLSP10 Series
Technical Datasheet
Available to Order
| Quantity | Price |
|---|---|
| 25+ | $15.010 |
| 100+ | $14.440 |
| 500+ | $13.250 |
| 1000+ | $13.050 |
Price for:Each
Minimum: 80
Multiple: 8
$1,200.80
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerLITTELFUSE
Manufacturer Part NoLSP10277P
Newark Part No.83X6921
Product RangeLSP10 Series
Technical Datasheet
Suppressor TypeMains Surge Protector
Voltage Rating VAC277V
Voltage Rating VDC-
No. of Poles1 Pole
Product RangeLSP10 Series
SPD TypeType 2
Peak Surge Current20kA
Clamping Voltage Vc Max-
Varistor Case StyleModule
Continuing Operating Voltage Max320VAC
Suppressor MountingPanel
Varistor TypeMetal Oxide Varistor (MOV)
Peak Surge Current @ 8/20µS20kA
Operating Temperature Min-40°C
Operating Temperature Max85°C
Peak Energy (10/1000uS)-
Plug Type-
SVHCTo Be Advised
Technical Specifications
Suppressor Type
Mains Surge Protector
Voltage Rating VDC
-
Product Range
LSP10 Series
Peak Surge Current
20kA
Varistor Case Style
Module
Suppressor Mounting
Panel
Peak Surge Current @ 8/20µS
20kA
Operating Temperature Max
85°C
Plug Type
-
Voltage Rating VAC
277V
No. of Poles
1 Pole
SPD Type
Type 2
Clamping Voltage Vc Max
-
Continuing Operating Voltage Max
320VAC
Varistor Type
Metal Oxide Varistor (MOV)
Operating Temperature Min
-40°C
Peak Energy (10/1000uS)
-
SVHC
To Be Advised
Technical Docs (3)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
