EPBAD24
Panel Mount Barrier Terminal Block, Enclosed (Modular Snap-Together), 115 A, 600 V, 5 Pole, 1

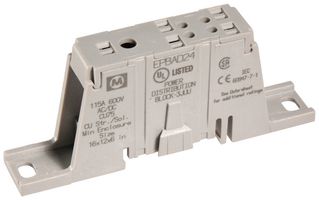

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMARATHON SPECIAL PRODUCTS
Manufacturer Part NoEPBAD24
Newark Part No.05R9557
Also Known AsGTIN UPC EAN: 784337 13111
Technical Datasheet
79 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $55.550 |
| 10+ | $55.550 |
| 50+ | $55.550 |
| 100+ | $55.550 |
Price for:Each
Minimum: 1
Multiple: 1
$55.55
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMARATHON SPECIAL PRODUCTS
Manufacturer Part NoEPBAD24
Newark Part No.05R9557
Also Known AsGTIN UPC EAN: 784337 13111
Technical Datasheet
Rated Current115A
Rated Voltage600V
No. of Poles5 Pole
Line Side Connections Per Pole1
Line Side Connection MethodScrew
Line Side Wire Size Max2AWG
Load Side Connections Per Pole4
Load Side Connection MethodScrew
Load Side Wire Size Max10AWG
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The EPBAD24 is a 4-position enclosed Power Distribution Block with thermoplastic insulator base, tin-plated aluminum connector, nickel-plated terminal set screw and zinc-plated steel connector mounting screws. 14 to 2AWG wire size, it is factor and field wiring.
- UL94V-0 Flammability rating
- IP20 Protection rating
Applications
Industrial, Power Management
Technical Specifications
Rated Current
115A
No. of Poles
5 Pole
Line Side Connection Method
Screw
Load Side Connections Per Pole
4
Load Side Wire Size Max
10AWG
SVHC
No SVHC (21-Jan-2025)
Rated Voltage
600V
Line Side Connections Per Pole
1
Line Side Wire Size Max
2AWG
Load Side Connection Method
Screw
Product Range
-
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
