                      AC164130-2

                      Daughter Board, Connector to Explorer 16 Development Board & PIC18 Explorer Board, CAN & LIN

                      Date/Lot Code

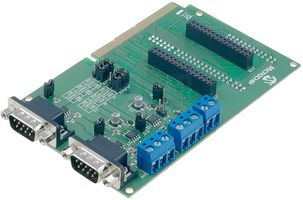

                      MICROCHIP AC164130-2
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerMICROCHIP
                      Manufacturer Part NoAC164130-2
                      Newark Part No.41T3650
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      2 In Stock

                      Need more?

                      Same day shipping
                      Order before 9pm EST standard shipping
                      QuantityPrice
                      1+$79.250
                      Price for:Each
                      Minimum: 1
                      Multiple: 1
                      $79.25
                      Enter Your Part No/Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerMICROCHIP
                      Manufacturer Part NoAC164130-2
                      Newark Part No.41T3650
                      Technical Datasheet

                      Data Sheet

                      Silicon ManufacturerMicrochip
                      Core ArchitecturePIC, dsPIC
                      Core Sub-ArchitecturePIC24, dsPIC33
                      Silicon Core Number-
                      Silicon Family NamePICtail
                      For Use WithDM183032 & DM240001 Dev Boards
                      Kit ContentsDaughter Board
                      Product Range-
                      SVHCNo SVHC (10-Jun-2022)

                      Product Overview

                      AC164130-2 is a CAN/LIN PICtail (Plus) daughter board. This board is compatible with both the Explorer 16 Development Board and the PIC18 Explorer Board to facilitate rapid implementation and evaluation of applications that use Controller Area Network (CAN) and Local Interconnect Network (LIN) interfaces and are implemented on dsPIC33F Digital Signal Controllers, PIC24 16bit microcontrollers and PIC18 8bit microcontrollers. It offers two interfaces: one for a CAN bus and one for a LIN bus. Both interfaces can be used simultaneously. Appropriate bus transceivers on the CAN/LIN/J2602 PICtail (Plus) Daughter Board complete the physical layer requirements of the CAN and LIN bus protocols. In both cases, communication is driven by the dsPIC33F, PIC24 or PIC18 device on its respective development board.

                      • Connector to Explorer 16 Development Board and PIC18 Explorer Board
                      • Two CAN communication channels interfacing to ECAN module
                      • Two LIN communication channels interfacing to UART module

                      Applications

                      Automotive, Communications & Networking

                      Technical Specifications

                      Silicon Manufacturer

                      Microchip

                      Core Sub-Architecture

                      PIC24, dsPIC33

                      Silicon Family Name

                      PICtail

                      Kit Contents

                      Daughter Board

                      SVHC

                      No SVHC (10-Jun-2022)

                      Core Architecture

                      PIC, dsPIC

                      Silicon Core Number

                      -

                      For Use With

                      DM183032 & DM240001 Dev Boards
