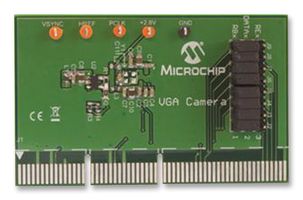

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | AC164150Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Newark Part No. | 86W0352 |
| Your Part Number | |
| Technical Datasheet |
4 In Stock
Need more?
Delivery in 4-6 Business Days(UK stock)
Order before 6pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $83.140 |
Price for:Each
Minimum: 1
Multiple: 1
$83.14
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | AC164150Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Newark Part No. | 86W0352 |
| Technical Datasheet | |
| Silicon Manufacturer | Microchip |
| Core Architecture | PIC |
| Core Sub-Architecture | PIC32 |
| Silicon Core Number | - |
| Silicon Family Name | - |
| For Use With | PIC32 MCU Development Boards |
| Kit Contents | VGA Camera Sensor PICtail Plus Daughter Board |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
AC164150 is a PIC32 VGA CAMERA SENSOR PICTAIL™ PLUS demonstration board for evaluating Microchip Technology’s basic surveillance and vision solutions using 32-bit microcontrollers. It can capture & process 8bit gray scale or color images with up to 640x480 resolution. It interfaces to the I/O expansion board (DM320002) with PIC32 starter kits (DM320004 or DM320003-2), Graphics Controller PICTail™ Plus Epson S1D13517 Board (AC164127-7) and Graphics Display Truly 5.7” 640x480 board (AC164127-8). Typical applications include Image capture, processing and connectivity.
- 640x480 VGA color CMOS sensor on our standard PICTail™ plus form factor
- Based on the Omnivision OVM7690 CameraCubeChip™
- Convenient test points for video sync and clock sync
- Jumper configurable for display out or image transport over Ethernet
Technical Specifications
| Silicon Manufacturer | Microchip |
|---|---|
| Core Sub-Architecture | PIC32 |
| Silicon Family Name | - |
| Kit Contents | VGA Camera Sensor PICtail Plus Daughter Board |
| SVHC | No SVHC (04-Feb-2026) |
| Core Architecture | PIC |
|---|---|
| Silicon Core Number | - |
| For Use With | PIC32 MCU Development Boards |
| Product Range | - |
Technical Docs (2)
Legislation and Environmental
| US ECCN: | 3A991A2 |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
