MDOD128064A1D-WM
Graphic OLED, 128 x 64 Pixels, White on Black, 3V, SPI, I2C, 39.4mm x 24.8mm, -20 °C

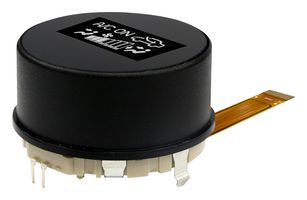

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMDOD128064A1D-WM
Newark Part No.29AK0845
Technical Datasheet
No Longer Available
Product Information
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMDOD128064A1D-WM
Newark Part No.29AK0845
Technical Datasheet
Resolution128 x 64 Pixels
Display AppearanceWhite on Black
Logic Voltage3V
Module Size39.4mm x 24.8mm
Operating Temperature Min-20°C
Operating Temperature Max70°C
Display ConstructionCTP Dial
Product Range-
SVHCNo SVHC (27-Jun-2024)
Product Overview
- Module dimension: Ø39.4 x 24.8 mm
- Active area: 21.74 x 10.86 mm
- Dot Matrix: 128 x 64
- Dot size: 0.148 x 0.148 mm
- Dot pitch: 0.17 x 0.17 mm
- Display Mode: Passive Matrix
- Duty: 1/64 Duty
- Display Color: OLED , White
- Controller IC: SSD1306
- Interface: 4 Wire SPI,I2C
- Size: 0.96"
Technical Specifications
Resolution
128 x 64 Pixels
Logic Voltage
3V
Operating Temperature Min
-20°C
Display Construction
CTP Dial
SVHC
No SVHC (27-Jun-2024)
Display Appearance
White on Black
Module Size
39.4mm x 24.8mm
Operating Temperature Max
70°C
Product Range
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
