MP013550

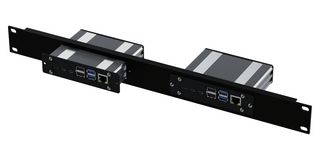

Rack Panel, Raspberry Pi5, 1U, 19", Black, Aluminum
Image is for illustrative purposes only. Please refer to product description.
19 In Stock
Need more?
5 Delivery in 1-3 Business Days(US stock)
14 Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST Standard Shipping
| Quantity | Price |
|---|---|
| 1+ | $111.360 |
| 3+ | $104.820 |
| 15+ | $93.900 |
Price for:Each
Minimum: 1
Multiple: 1
$111.36
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoMP013550
Newark Part No.83AK5903
Technical Datasheet
For Use WithRaspberry Pi5
External Height44mm
External Width77mm
External Depth12mm
Enclosure / Case MaterialAluminum
SVHCNo SVHC (14-Jun-2023)
Product Overview
MP013550 is the 19" rack solution for housing the Raspberry Pi 5. This item includes 1 x cut-out and 1 x PI-Box Pro 5 case. PI-Box Pro 5 rear end plate made from 3mm black acrylic to enable Bluetooth and Wi-Fi signals from Raspberry Pi 5.
- A 1U 19” extruded aluminum rack panel milled to fit a removable PI-Box Pro 5 unit(s)
- 1 unit version
- Rack Panels are available in black anodize with a brushed finish
- Front end plate material: aluminum 5005 sheet
- Front end plate finish: black anodized 10μm
- Front end plate thickness: 1.5mm
- PI-Box Pro 5 case (MP013548) includes extender board
- PI-Box Pro 5 extrusion made from aluminum 6063 T6 (HE9) with a silver anodized 5μm finish
Applications
Consumer Electronics, Automation & Process Control, Factory Automation, Industrial, Industrial Automation Control, Mechanical, Utilities
Contents
x1 Rack front-black, 1 cut-out, x1 Pi-Box Pro 5 (MP013548).
Technical Specifications
For Use With
Raspberry Pi5
External Width
77mm
Enclosure / Case Material
Aluminum
External Height
44mm
External Depth
12mm
SVHC
No SVHC (14-Jun-2023)
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (14-Jun-2023)
