FF0126BACAEA01-WL
Emergency Stop Switch, DPST-NC-DB, On-Off, Wire Leaded, 500 mA, 24 V

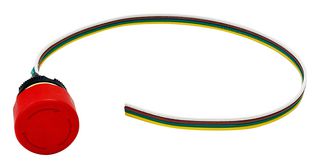

Image is for illustrative purposes only. Please refer to product description.
ManufacturerNKK SWITCHES
Manufacturer Part NoFF0126BACAEA01-WL
Newark Part No.03AM9178
Product RangeFF01 Series
Technical Datasheet
1 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $44.020 |
| 10+ | $44.020 |
| 25+ | $44.020 |
| 50+ | $44.020 |
| 100+ | $44.020 |
| 250+ | $44.020 |
Price for:Each
Minimum: 1
Multiple: 1
$44.02
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerNKK SWITCHES
Manufacturer Part NoFF0126BACAEA01-WL
Newark Part No.03AM9178
Product RangeFF01 Series
Technical Datasheet
Contact ConfigurationDPST-NC-DB
Switch OperationOn-Off
Switch TerminalsWire Leaded
Contact Current Max500mA
Contact Voltage AC Nom-
Contact Voltage DC Nom24V
Pushbutton Actuator StyleMushroom
IP RatingIP65
Product RangeFF01 Series
SVHCNo SVHC (17-Dec-2015)
Product Overview
FF0126BACAEA01-WL is a FF01 series emergency stop switch. It features a low profile body and impressively short behind panel depth of only 0.53inch, offering advantages to high-density panel layouts. This switch is IP65 rated at the front panel per IEC 60529 standards (dust-tight and protected against water jets from any direction). Outstanding safety and reliability factor is benefits of a unique sliding latch mechanism that maintains the OFF state of the contacts. Protection against rugged vibration and chattering credited to internal construction featuring superior shock resistant properties.
- DPST pole, latch down circuit
- N/C contact point
- Red actuator color, arrows actuator legend
- Yellow housing, solder lug termination style
- 0.5A (DC) current rating, non-Illuminated
- Front panel seal structure, gold over silver contact finish
- On-Off circuits
- Operating temperature range from -25°C to +60°C
Technical Specifications
Contact Configuration
DPST-NC-DB
Switch Terminals
Wire Leaded
Contact Voltage AC Nom
-
Pushbutton Actuator Style
Mushroom
Product Range
FF01 Series
Switch Operation
On-Off
Contact Current Max
500mA
Contact Voltage DC Nom
24V
IP Rating
IP65
SVHC
No SVHC (17-Dec-2015)
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:To be advised
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (17-Dec-2015)
