OM-EL-USB-4
Data Logger, Temperature, Humidity & Dew Point, 1 Channel, 16K Samples, USB
| Manufacturer | OMEGA |
|---|---|
| Manufacturer Part No | OM-EL-USB-4Copy |
| Newark Part No. | 45AK2292 |
| Product Range | OM-EL-USB Series |
| Your Part Number | |
| Technical Datasheet |
| Quantity | Price |
|---|---|
| 1+ | $164.490 |
Product Information
| Manufacturer | OMEGA |
|---|---|
| Manufacturer Part No | OM-EL-USB-4Copy |
| Newark Part No. | 45AK2292 |
| Product Range | OM-EL-USB Series |
| Technical Datasheet | |
| Data Logger Type | Temperature, Humidity & Dew Point |
| No. of Channels / Inputs | 1 Channel |
| Sensor / Measurement Type | - |
| Maximum Samples | 16K Samples |
| Data Interface | USB |
| Display Type | - |
| Product Range | OM-EL-USB Series |
| SVHC | No SVHC (17-Jan-2022) |
Product Overview

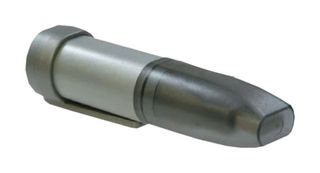

OM-EL-USB-4 is a portable current data logger with USB Interface. The user can easily set up the data logger and download the stored data by plugging the module into a PC's USB port and running the easy-to-use Windows software. Software-selectable setup parameters include logging rate, start-time, high/low alarm settings. Data can then be graphed, printed, and exported to other applications such as Excel. Each data logger is supplied complete with a long-life lithium battery. Built-in LED indicators show data logger status.
- Current range from 4 to 20mA with resolution: 0.1mA
- Bright red, green status LED indication
- Low battery warning
- IP67 protection
- ½ AA 3.6V lithium battery (included)
- Start date/time selectable in software
- 32,000 current readings memory and 1 seconds to 12 hours logging interval
- Start date/time selectable in software
- ½ AA 3.6V lithium battery (included)
Contents
Current data logger with USB interface, Windows software on CD-ROM, Operator ’s manual and 3.6V lithium battery.
Technical Specifications
| Data Logger Type | Temperature, Humidity & Dew Point |
|---|---|
| Sensor / Measurement Type | - |
| Data Interface | USB |
| Product Range | OM-EL-USB Series |
| No. of Channels / Inputs | 1 Channel |
|---|---|
| Maximum Samples | 16K Samples |
| Display Type | - |
| SVHC | No SVHC (17-Jan-2022) |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (17-Jan-2022) |
| Download Product Compliance Certificate | Product Compliance Certificate |
