BUB323ZT4G
BIPOLAR TRANSISTOR, DARLI.

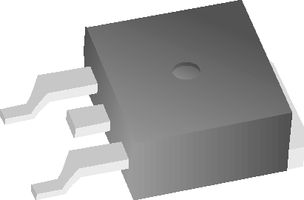

Image is for illustrative purposes only. Please refer to product description.
Packaging Options
811 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $4.530 |
| 10+ | $3.280 |
| 25+ | $3.050 |
| 50+ | $2.810 |
| 100+ | $2.580 |
| 250+ | $2.420 |
| 500+ | $2.260 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$4.53
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerONSEMI
Manufacturer Part NoBUB323ZT4G
Newark Part No.71AC2864
Technical Datasheet
Transistor PolarityNPN
Collector Emitter Voltage V(br)ceo350V
Collector Emitter Voltage Max350V
Continuous Collector Current10A
Transition Frequency2MHz
Power Dissipation Pd150W
DC Collector Current10A
Power Dissipation150W
RF Transistor CaseTO-263 (D2PAK)
No. of Pins3Pins
DC Current Gain hFE500hFE
Transistor Case StyleTO-263 (D2PAK)
Transistor MountingSurface Mount
DC Current Gain hFE Min500hFE
Operating Temperature Max175°C
Product Range-
QualificationAEC-Q101
Automotive Qualification StandardAEC-Q101
Technical Specifications
Transistor Polarity
NPN
Collector Emitter Voltage Max
350V
Transition Frequency
2MHz
DC Collector Current
10A
RF Transistor Case
TO-263 (D2PAK)
DC Current Gain hFE
500hFE
Transistor Mounting
Surface Mount
Operating Temperature Max
175°C
Qualification
AEC-Q101
MSL
MSL 1 - Unlimited
Collector Emitter Voltage V(br)ceo
350V
Continuous Collector Current
10A
Power Dissipation Pd
150W
Power Dissipation
150W
No. of Pins
3Pins
Transistor Case Style
TO-263 (D2PAK)
DC Current Gain hFE Min
500hFE
Product Range
-
Automotive Qualification Standard
AEC-Q101
SVHC
Lead (27-Jun-2024)
Technical Docs (3)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (27-Jun-2024)
