J107
JFET Transistor, Junction Field Effect, -25 V, 100 mA, -4.5 V, TO-92, 3 Pin, 150 °C

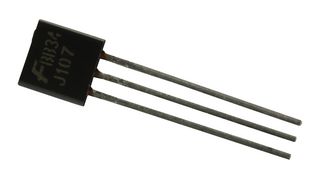

Image is for illustrative purposes only. Please refer to product description.
10 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown
| Quantity | Price |
|---|---|
| 10000+ | $0.327 |
Price for:Each
Maximum available is 10
Minimum: 10000
Multiple: 10000
$3,270.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerONSEMI
Manufacturer Part NoJ107
Newark Part No.58K1754
Technical Datasheet
Gate Source Breakdown Voltage Max-25V
Breakdown Voltage Vbr-25V
Zero Gate Voltage Drain Current Idss Min100mA
Zero Gate Voltage Drain Current Max100mA
Gate Source Cutoff Voltage Max-4.5V
Transistor Case StyleTO-92
Transistor TypeJFET
Channel TypeN Channel
No. of Pins3 Pin
Operating Temperature Max150°C
Transistor MountingThrough Hole
Qualification-
Product Range-
MSLMSL 1 - Unlimited
SVHCNo SVHC (15-Jan-2019)
Product Overview
The J107 is a N-channel JFET Transistor for analog or digital switching applications.
- 625mW Power Dissipation
Applications
Audio, Signal Processing, Communications & Networking
Technical Specifications
Gate Source Breakdown Voltage Max
-25V
Zero Gate Voltage Drain Current Idss Min
100mA
Gate Source Cutoff Voltage Max
-4.5V
Transistor Type
JFET
No. of Pins
3 Pin
Transistor Mounting
Through Hole
Product Range
-
SVHC
No SVHC (15-Jan-2019)
Breakdown Voltage Vbr
-25V
Zero Gate Voltage Drain Current Max
100mA
Transistor Case Style
TO-92
Channel Type
N Channel
Operating Temperature Max
150°C
Qualification
-
MSL
MSL 1 - Unlimited
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2019)
