UHB100SC12E1BC3N
SIC MOSFET, P-CH, 1.2KV, 100A, PIM

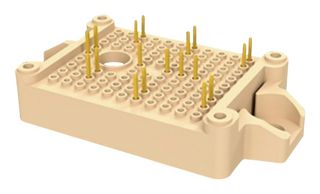

Image is for illustrative purposes only. Please refer to product description.
ManufacturerONSEMI
Manufacturer Part NoUHB100SC12E1BC3N
Newark Part No.49AM1482
Product RangeEliteSiC Series
Technical Datasheet
24 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $345.970 |
| 10+ | $332.930 |
| 48+ | $321.230 |
| 72+ | $313.960 |
| 120+ | $296.590 |
| 264+ | $290.840 |
| 504+ | $284.980 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$345.97
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerONSEMI
Manufacturer Part NoUHB100SC12E1BC3N
Newark Part No.49AM1482
Product RangeEliteSiC Series
Technical Datasheet
MOSFET Module ConfigurationHalf Bridge
Channel TypeP Channel
Continuous Drain Current Id100A
Drain Source Voltage Vds1.2kV
Drain Source On State Resistance0.012ohm
Transistor Case StylePIM
No. of Pins18Pins
Rds(on) Test Voltage12V
Gate Source Threshold Voltage Max6V
Power Dissipation417W
Operating Temperature Max150°C
Product RangeEliteSiC Series
SVHCNo SVHC (25-Jun-2025)
Technical Specifications
MOSFET Module Configuration
Half Bridge
Continuous Drain Current Id
100A
Drain Source On State Resistance
0.012ohm
No. of Pins
18Pins
Gate Source Threshold Voltage Max
6V
Operating Temperature Max
150°C
SVHC
No SVHC (25-Jun-2025)
Channel Type
P Channel
Drain Source Voltage Vds
1.2kV
Transistor Case Style
PIM
Rds(on) Test Voltage
12V
Power Dissipation
417W
Product Range
EliteSiC Series
Technical Docs (2)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
