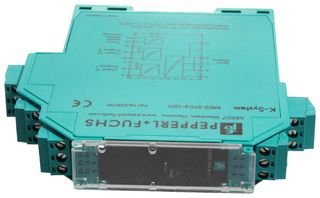

KFD2-STC4-1.2O
Smart Transmitter Power Supply, 1 Channel, 24 Vdc, Din rail
Image is for illustrative purposes only. Please refer to product description.
ManufacturerPEPPERL+FUCHS PA
Manufacturer Part NoKFD2-STC4-1.2O
Newark Part No.03H4752
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 3 week(s)
| Quantity | Price |
|---|---|
| 1+ | $647.760 |
| 5+ | $631.560 |
| 10+ | $615.370 |
| 25+ | $582.970 |
Price for:Each
Minimum: 1
Multiple: 1
$647.76
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerPEPPERL+FUCHS PA
Manufacturer Part NoKFD2-STC4-1.2O
Newark Part No.03H4752
Technical Datasheet
Signal Conditioner Input4mA to 20mA
Signal Conditioner OutputCurrent
No. of Output Channels-
Accuracy-
Output Accuracy-
Supply Voltage24VDC
No. of Channels1 Channel
Signal Conditioner MountingDIN Rail
Isolation InputIsolated
Product Range-
SVHCTo Be Advised
Product Overview
The KFD2-STC4-1.2O is a 1-channel isolated SMART Transmitter Power Supply with 2 galvanically isolated outputs. SMART transmitter power supply provides a 2 or 3-wire SMART transmitter and transfer the analogue values. Digital signals may be superimposed on the analogue values, which will transferred bi-directionally. An internal resistor at terminal 9 is available which may be used to increase the AC impedance for the HART signal. It is supplied of power to the SMART transmitter and the transfer of the measurement current.
- Within the supply tolerance ripple
- Analog input signal
- IP20 Protection rating
Applications
Industrial, Automation & Process Control, Signal Processing
Technical Specifications
Signal Conditioner Input
4mA to 20mA
No. of Output Channels
-
Output Accuracy
-
No. of Channels
1 Channel
Isolation Input
Isolated
SVHC
To Be Advised
Signal Conditioner Output
Current
Accuracy
-
Supply Voltage
24VDC
Signal Conditioner Mounting
DIN Rail
Product Range
-
