Signal Converter, 24 VDC

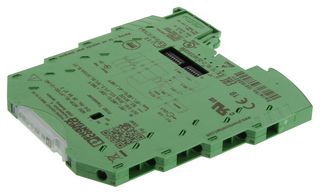

Image is for illustrative purposes only. Please refer to product description.
ManufacturerPHOENIX CONTACT
Manufacturer Part No2864273
Newark Part No.57AC7768
Product RangeMINI MCR
Technical Datasheet
20 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $286.210 |
| 10+ | $265.150 |
| 50+ | $247.800 |
| 100+ | $237.890 |
| 250+ | $223.030 |
Price for:Each
Minimum: 1
Multiple: 1
$286.21
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerPHOENIX CONTACT
Manufacturer Part No2864273
Newark Part No.57AC7768
Product RangeMINI MCR
Technical Datasheet
Signal Conditioner InputPt100
Signal Conditioner OutputCurrent, Voltage
No. of Output Channels1Channels
Accuracy-
Output Accuracy-
Supply Voltage24VDC
No. of Channels1 Channel
Signal Conditioner MountingDIN Rail
Isolation InputIsolated
Product RangeMINI MCR
SVHCLead (21-Jan-2025)
Product Overview
2864273 is a MINI MCR-SL-PT100-UI-NC - resistance thermometer measuring transducer for Pt 100 temperature sensors. The 6.2mm wide MINI MCR-SL-PT100-UI-NC is a configurable 3-way isolated temperature measuring transducer. It is suitable for the connection of Pt 100 resistance thermometers according to IEC 60751 in 2, 3 and 4-wire connection methods. The DIP switches, which can be accessed on the side of the housing, are used to configure the parameters such as connection technology, temperature range to be measured, output signal and type of error evaluation.
- Configurable/programmable
- Sensor types (RTD) that can be used Pt 100 (IEC 60751/EN 60751)
- Sensor input current is 1mA (constant)
- Nominal supply voltage of 24V DC and max current consumption < 21mA (for 24V DC)
- Max output voltage approx of 12.5V and 23mA max output current
- Power consumption is < 500mW
- Screw connection and M3 screw thread
- IP20 degree of protection
- Pollution degree 2
- Ambient temperature (operation) range from -20°C to 65°C
