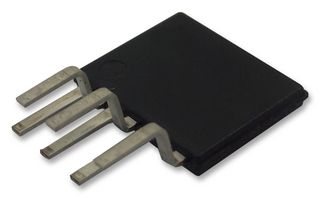

POWER INTEGRATIONS LNK420EG
LED Driver, AC / DC, 66 kHz, eSIP-7, -40 to 150 °C, Through Hole, Constant Current, 85 to 308 V
- Manufacturer:
- POWER INTEGRATIONS POWER INTEGRATIONS
- Manufacturer Part No:
- LNK420EG
- Newark Part No.:
- 15AJ6452
-
- Technical Datasheet:
- LNK420EG Datasheet
- ECAD / MCAD
-
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Constant Current
- :
- 85V
- :
- 308V
- :
- -
- :
- -
- :
- 66kHz
- :
- 1Outputs
- :
- Through Hole
- :
- eSIP
- :
- 7Pins
- :
- -40°C
- :
- 150°C
- :
- -
Technical Documents (1)
Product Overview
LinkSwitch™-PH single-stage PFC, primary-side constant current control and TRIAC dimming/non-dimming options dramatically simplifies implementation of LED drivers requiring long lifetime, high efficiency, PF >0.9, and TRIAC dimming capability (LNK403-410). The single-stage combined power factor and constant-current controller eliminates a switching stage and the electrolytic bulk capacitor. The advanced primary-side control used by the LinkSwitch-PH device provides accurate constant current control while eliminating the need for an optocoupler and current sensing circuits. LinkSwitch-PH incorporates a 725V power FET, a continuous mode PWM controller, a high-voltage switched current source for self-biasing, frequency jittering, protection circuitry including cycle-by-cycle current limit and hysteretic thermal shutdown. Meets high voltage creepage requirement between DRAIN and all other signal pins both on PCB and at package. Typically used in off-line LED driver applications.
- Minimum output power of 18W at CBP = 10µF and 31W at CBP = 100µF (85-132VAC, RV = 2Mohm)
- Dramatically simplifies off-line LED drivers, EcoSmart™ energy efficient
- Accurate and consistent performance, advanced protection and safety features
- Auto-restart for short-circuit protection, open circuit fault detection mode
- Single-stage combination of power factor correction and accurate constant-current (CC) output
- Simple primary-side PWM dimming interface, universal input voltage range
- Single-stage PFC combined with output CC control
- Greatly increases efficiency, >90% achievable, reduces component count, no current sense resistors
- Low standby power remote ON/OFF feature (<50mW at 230VAC)
- Compensates for transformer inductance variations, compensates for line input voltage variation
