381A301-71/42-0
Heat Shrink Boot, Molded Adhesive Lined, Y Transition, 0.78 ", 19.8 mm, Black, 1.6 ", 40.64 mm

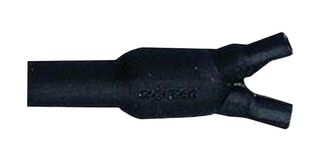

Image is for illustrative purposes only. Please refer to product description.
ManufacturerRAYCHEM - TE CONNECTIVITY
Manufacturer Part No381A301-71/42-0
Newark Part No.36K3055
Technical Datasheet
12 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $35.920 |
| 5+ | $33.720 |
| 10+ | $31.520 |
| 25+ | $29.530 |
| 50+ | $27.910 |
| 100+ | $27.490 |
| 250+ | $27.240 |
Price for:Each
Minimum: 1
Multiple: 1
$35.92
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerRAYCHEM - TE CONNECTIVITY
Manufacturer Part No381A301-71/42-0
Newark Part No.36K3055
Technical Datasheet
Boot ConfigurationY Transition
I.D. Supplied - Imperial0.78"
I.D. Supplied - Metric19.8mm
Shrink Tubing / Boot ColourBlack
Total Length - Imperial1.6"
Total Length - Metric40.64mm
I.D. Recovered Max - Imperial0.26"
I.D. Recovered Max - Metric6.6mm
Shrink Tubing / Boot MaterialPO (Polyolefin)
Shrink Ratio-
Product Range-
SVHCNo SVHC (23-Jan-2024)
Product Overview
The 381A301-71/42-0 is a black Heat Shrink Boot made of flexible polyolefin with general purpose pre-coat adhesive and Y-type transition configuration. Equal size outlets provide strain relief and mechanical protection at "Y"-junctions in cable harness assemblies. Suitable for occasional exposure to fluids/chemical resistance.
- One to two cables, slimline Y-shape
- -75 to 150°C Operating temperature range
- Flame-retardant
Applications
Industrial
Technical Specifications
Boot Configuration
Y Transition
I.D. Supplied - Metric
19.8mm
Total Length - Imperial
1.6"
I.D. Recovered Max - Imperial
0.26"
Shrink Tubing / Boot Material
PO (Polyolefin)
Product Range
-
I.D. Supplied - Imperial
0.78"
Shrink Tubing / Boot Colour
Black
Total Length - Metric
40.64mm
I.D. Recovered Max - Metric
6.6mm
Shrink Ratio
-
SVHC
No SVHC (23-Jan-2024)
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (23-Jan-2024)
