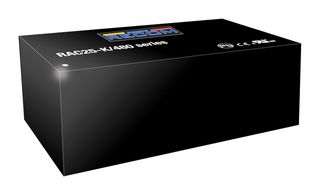

RAC25-12SK/480

RAC25-12SK/480 is a RAC25-K/480 series, 25W AC/DC module with ultra-wide input range. It is specially designed for harsh industrial conditions of overvoltage category OVC III and pollution degree PD3 in both single-phase and phase-to-phase power connections of class II. This power supply is capable of operating over a wide temperature range of -40° to 90°C (up to 60°C without derating) by just adding an external fuse, and offer LPS limited outputs with continuous overcurrent protection and emission class B EMC compliance in potential free configuration of the load. This silicone-free encapsulated module is built extremely compact to fit on printed circuit boards without compromising board area. Global safety certifications ensure fast time-to-market when integrated into applications for markets such as smart grid, smart metering, renewable energy, sensors and actuators or IoT applications. Certified by IEC/EN62368-1, UL62368-1, CAN/CSA-C22.2 No. 62368-1-14, IEC/EN61010.

• 85 to 528VAC input voltage range, 12VDC output voltage, 2080mA output current
• 84% typical efficiency (tested at 230VAC input and constant resistive load at +25°C ambient)
• Internal operating frequency of 50KHz
• OVC III and PD3 up to 5000m altitude
• Compliant to EN55032 and EN55035
• LPS limited power source
• EN55032 class “B”, floating outputs
• Single output, no load power consumption <lt/>0.3W
• Short circuit, overvoltage and overcurrent protection
• Polycarbonate (UL94V-0) case/baseplate, dimension (LxWxH) is 3.27inch x 1.82inch x 1.19inch
