DG4202

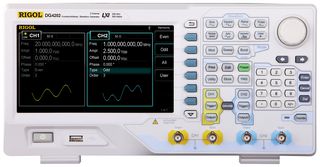

DG4202 is a DG4000 series, 2 channel, 200MHz bandwidth function/arbitrary waveform generator. It is a multi-functional generator that integrates many functions into one, including function generator, arbitrary waveform generator, pulse generator, harmonic generator, analog/ digital modulator and frequency counter. With the Direct Digital Synthesizer (DDS) technology, the DG4000 series provides stable, precise, pure and low distortion signals. The high-definition wide screen display, friendly interface design and key operation layout bring users with extraordinary experience.

• 500MSa/s sample rate, 14 bit vertical resolution
• 2ppm high-frequency stability
• Low phase noise of -115dBc/Hz
• Versatile analog and digital modulation functions
• 150 built-in waveforms, 7digits/s, 200MHz built-in counter
• Harmonic generator that can generate up to 16th order of harmonic
• USB host & device, LAN connectivity
• 7 inch LCD display (800 x 480)
• Power voltage range from 100V to 240V, operating temperature range from 10°C to 40°C
• Dimension is (W x H x D) 12.32inch x 6.32inch x 4.59inch

Contents

Function/arbitrary waveform generator, Power cord, USB cable, BNC cable (1 meter), Quick guide, Resource CD (including user’s guide and application software), Warranty.
