DG992

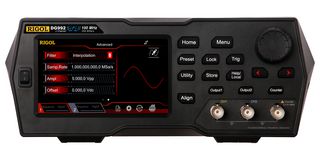

DG992 is a DG900 series 100MHz, dual-channel function/arbitrary waveform generator. It is a multi-functional generator that integrates many functions into one, including function generator, arbitrary waveform generator, noise generator, pulse generator, pattern generator, harmonics generator, analog/digital modulator and frequency counter.

• Unique SiFi II (Signal Fidelity II) technology, 250MSa/s sample rate, 14 bit vertical resolution
• 16Mpts memory depth per channel for arbitrary waveforms
• Standard dual-channel with the same performance, equivalent to two independent signal sources
• High frequency stability: ±1 ppm; low phase noise: -105dBc/Hz
• Built-in high-order harmonic generator, built-in 7 digits/s, 240MHz bandwidth frequency counter
• Up to 160 built-in arbitrary waveforms
• Standard interface: USB host & device and LAN (LXI core 2011 device), USB-GPIB function supported
• Various analog and digital modulation functions: AM, FM, PM, ASK, FSK, PSK and PWM
• 4.3'' TFT color touch screen, RS232, PRBS, and dual-tone outputs supported
• Dimension is (W×H×D) 10.29" × 4.40" ×12.53"

Contents

Function/arbitrary waveform generator, Power cord conforming to the standard of the destination country, USB cable, BNC cable, Quick guide, Product warranty card.
