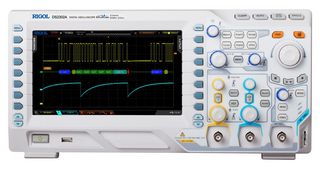

DS2302A

DS2302A is a DS2000A series 300MHz digital signal oscilloscope. The DSO2000A series oscilloscopes bring advanced triggering, large display, and decoding features to customers. The DS2000A series is a two channels and a wide vertical range (500uV/div-10V/div) to deliver an extremely low noise floor to help you capture smaller signals. Add a 2GSa/s max. sample rate and 14Mpts of standard memory depth to its user-friendly interface and 8inch WVGA display and you’ve got a scope that outperforms the competition in a wide range of bench-top and field applications.

• 2-analog channel DSO
• Innovative "UltraVision" technology
• 8 inch TFT (800x480) WVGA display
• Waveform capture rate up to 52,000wfms/s
• Up to 256 levels intensity grading waveform display
• Up to 65,000 frames hardware real-time waveform record, playback and analysis functions (standard)
• A variety of trigger and bus decoding functions (Parallel, RS232, I2C, SPI, CAN)
• Complete connectivity: USB host & device, LAN (LXI), AUX, USB-GPIB (optional)
• Power voltage range from 100V to 240V, 45Hz to 440Hz
• Width x height x depth = 14.23inch x 7.07inch x 5.14inch size

Contents

DSO, Power cord conforming to the standard of the destination country, USB data cable, 2 x passive probes (350MHz), Quick guide (hard copy).
