IL13-US1-SVT-3100-183

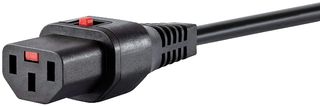

Mains Power Cord, NEMA 5-15P to IEC 60320 C13, 1.8 m, 10 A, 250 VAC, Black
Image is for illustrative purposes only. Please refer to product description.
ManufacturerSCHAFFNER - TE CONNECTIVITY
Manufacturer Part NoIL13-US1-SVT-3100-183
Newark Part No.83T3912
Technical Datasheet
153 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $14.690 |
| 5+ | $13.420 |
| 10+ | $12.150 |
| 25+ | $11.730 |
| 50+ | $11.290 |
| 100+ | $10.510 |
| 250+ | $9.450 |
Price for:Each
Minimum: 1
Multiple: 1
$14.69
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSCHAFFNER - TE CONNECTIVITY
Manufacturer Part NoIL13-US1-SVT-3100-183
Newark Part No.83T3912
Technical Datasheet
Connector to ConnectorNEMA 5-15P to IEC 60320 C13
Connector Type AIEC 60320 C13
Cable Length - Metric1.8m
Connector Type BNEMA 5-15P
Current Rating10A
Voltage Rating250VAC
Jacket ColorBlack
Product Range-
Cable Length - Imperial6ft
SVHCNo SVHC (14-Jun-2023)
Product Overview
The IL13-US1-SVT-3100-183 is a 1.83m IEC Power Cord with locking system for IEC C14 inlet, US version. Schaffner power cord with IEC lock guard against accidental disconnection of all electrical appliances with an IEC inlet. No exchange or modification of the IEC inlet or IEC inlet filter system is needed. Easy retrofit for all electronic equipments and devices.
- 3 x 1mm² (US: 18AWG) Cable core
- NEMA-5 to 15, Straight line side plug
- The locking system has a tensile force of typical 200N
- Suitable for use with any C14 IEC inlet
- Protection class-I
- -25 to 70°C Operating temperature range
- UL94V-2 Plugs flammability rating
Applications
Power Management
Technical Specifications
Connector to Connector
NEMA 5-15P to IEC 60320 C13
Cable Length - Metric
1.8m
Current Rating
10A
Jacket Color
Black
Cable Length - Imperial
6ft
Connector Type A
IEC 60320 C13
Connector Type B
NEMA 5-15P
Voltage Rating
250VAC
Product Range
-
SVHC
No SVHC (14-Jun-2023)
Technical Docs (3)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (14-Jun-2023)
Download Product Compliance Certificate
Product Compliance Certificate
