LG16-0431D
Flow Meter, Flowmeter, 15 bar, 4 V

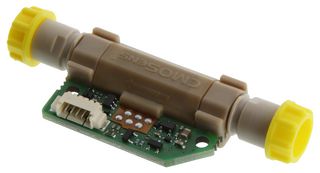

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSENSIRION
Manufacturer Part NoLG16-0431D
Newark Part No.51AH9823
Product RangeCMOSens LG16 Series
Technical Datasheet
15 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $515.500 |
| 5+ | $515.500 |
| 10+ | $515.500 |
Price for:Each
Minimum: 1
Multiple: 1
$515.50
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSENSIRION
Manufacturer Part NoLG16-0431D
Newark Part No.51AH9823
Product RangeCMOSens LG16 Series
Technical Datasheet
Sensor TypeFlowmeter
Flow Rate Min-
Flow Rate Max-
Operating Pressure Min-
Operating Pressure Max15bar
Supply Voltage Min4V
Supply Voltage Max12V
Accuracy± 0.15%
Media TypeLiquid
Process Connection Size-
Process Connection Type-
Pipe Size-
Sensor MountingScrew Mount
Operating Temperature Min10°C
Operating Temperature Max50°C
Product RangeCMOSens LG16 Series
Product Overview
LG16-0431D is a compact liquid flow meter for OEM applications. It enables fast, media separated measurements of very low liquid flow rates below 5000µl/min. This product line is especially suited for OEM volume applications requiring small sized components with high performance at low cost. Excellent chemical resistance and bio-compatibility are ensured: The flow path of the LG16 liquid flow sensor is formed by a straight-through glass capillary and end fittings. There are no obstructions in the flow path.
- High reliability and long-term stability
- Industry-proven technology with a track record of more than 15 year
- Designed for mass production, optimized for low cost
- Low signal noise, quartz glass (fused silica) internal sensor tube material
- PEEK fitting material, 5µl total internal volume
- 1mbar pressure drop (at full scale flow rate, H2O, 23°C)
- 7mbar pressure drop (at full scale flow rate, IPA, 23°C)
- Largest dimension is 2.08 x 0.86 x 0.35inch
- 30bar maximum recommended operating pressure
- 80bar burst pressure
Technical Specifications
Sensor Type
Flowmeter
Flow Rate Max
-
Operating Pressure Max
15bar
Supply Voltage Max
12V
Media Type
Liquid
Process Connection Type
-
Sensor Mounting
Screw Mount
Operating Temperature Max
50°C
SVHC
No SVHC (10-Jun-2022)
Flow Rate Min
-
Operating Pressure Min
-
Supply Voltage Min
4V
Accuracy
± 0.15%
Process Connection Size
-
Pipe Size
-
Operating Temperature Min
10°C
Product Range
CMOSens LG16 Series
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (10-Jun-2022)
