GD75FFY120C6SF

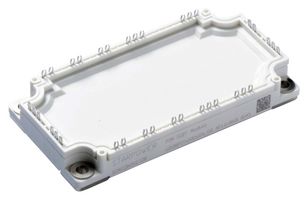

IGBT, FULL BRIDGE, 1.2KV, 117A, MODULE
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 29 week(s)
| Quantity | Price |
|---|---|
| 1+ | $124.720 |
| 5+ | $122.340 |
| 10+ | $119.850 |
| 30+ | $118.600 |
| 50+ | $117.380 |
| 100+ | $112.480 |
Price for:Each
Minimum: 1
Multiple: 1
$124.72
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerSTARPOWER
Manufacturer Part NoGD75FFY120C6SF
Newark Part No.84AH5752
Technical Datasheet
IGBT ConfigurationThree Phase Full Bridge
Continuous Collector Current117A
DC Collector Current117A
Collector Emitter Saturation Voltage1.7V
Collector Emitter Saturation Voltage Vce(on)1.7V
Power Dissipation Pd380W
Power Dissipation380W
Operating Temperature Max150°C
Junction Temperature, Tj Max150°C
Transistor Case StyleModule
IGBT TerminationPress Fit
Collector Emitter Voltage Max1.2kV
Collector Emitter Voltage V(br)ceo1.2kV
IGBT TechnologyTrench Field Stop
Transistor MountingPanel
Product Range-
SVHCTo Be Advised
