23.3060-29

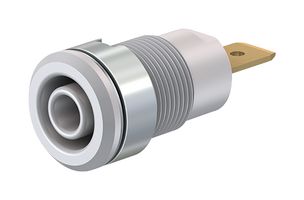

Banana Test Connector, 4mm, Socket, Jack, Panel Mount, 32 A, 1 kV, Gold Plated Contacts, White
Image is for illustrative purposes only. Please refer to product description.
ManufacturerSTAUBLI
Manufacturer Part No23.3060-29Copy
Manufacturer Standard Lead Time12 weeks
Newark Part No.40AH1765
Product RangeSLB4-F Series
Your Part Number
170 In Stock
Need more?
FREE Standard Delivery
on orders over $150
| Quantity | Price |
|---|---|
| 1+ | $5.530 |
| 10+ | $5.290 |
| 25+ | $4.960 |
| 50+ | $4.580 |
| 100+ | $4.310 |
| 250+ | $3.960 |
| 500+ | $3.590 |
| 1000+ | $3.400 |
Price for:Each
Minimum: 1
Multiple: 1
$5.53
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerSTAUBLI
Manufacturer Part No23.3060-29Copy
Manufacturer Standard Lead Time12 weeks
Newark Part No.40AH1765
Product RangeSLB4-F Series
Technical Datasheet
GenderJack
Connector MountingPanel Mount
Current Rating32A
Voltage Rating1kV
Contact PlatingGold Plated Contacts
Connector ColourWhite
Contact MaterialBrass
Contact Termination TypeQuick Connect
Product RangeSLB4-F Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
23.3060-29 is an insulated, rigid, Ø 4mm panel mount socket accepting spring-loaded Ø 4mm plugs with rigid insulating sleeve. The socket is screwed into pre-drilled panels of plastic, meal, etc.
- 1000V, CAT III/ 32A rated
- Made of machined brass
- Insulation material UL94 V-0
- Flat connecting tab 6.3mm x 0.8mm
- White color socket
Technical Specifications
Gender
Jack
Current Rating
32A
Contact Plating
Gold Plated Contacts
Contact Material
Brass
Product Range
SLB4-F Series
Connector Mounting
Panel Mount
Voltage Rating
1kV
Connector Colour
White
Contact Termination Type
Quick Connect
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Alternatives for 23.3060-29
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
