SD2932W
RF FET Transistor, 125 V, 40 A, 500 W, 175 MHz, 230 MHz, M244

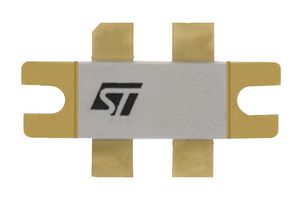

Image is for illustrative purposes only. Please refer to product description.
41 In Stock
Need more?
15 Delivery in 1-3 Business Days(US stock)
26 Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST Standard Shipping
| Quantity | Price |
|---|---|
| 1+ | $202.460 |
| 5+ | $188.570 |
| 10+ | $174.670 |
Price for:Each
Minimum: 1
Multiple: 1
$202.46
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoSD2932W
Newark Part No.47AK6900
Technical Datasheet
Drain Source Voltage Vds125V
Continuous Drain Current Id40A
Power Dissipation500W
Operating Frequency Min175MHz
Power Dissipation Pd500W
Operating Frequency Max230MHz
Transistor Case StyleM244
RF Transistor CaseM244
No. of Pins3Pins
Operating Temperature Max200°C
Channel TypeN Channel
Transistor MountingFlange
Product Range-
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Drain Source Voltage Vds
125V
Power Dissipation
500W
Power Dissipation Pd
500W
Transistor Case Style
M244
No. of Pins
3Pins
Channel Type
N Channel
Product Range
-
Continuous Drain Current Id
40A
Operating Frequency Min
175MHz
Operating Frequency Max
230MHz
RF Transistor Case
M244
Operating Temperature Max
200°C
Transistor Mounting
Flange
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
