5-965906-1

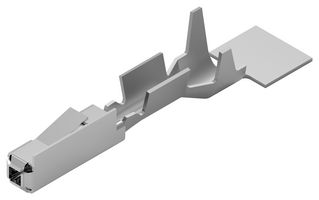

Automotive Connector Contact, MQS Series, Socket, Crimp, 20 AWG
Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY
Manufacturer Part No5-965906-1
Newark Part No.68AH8388
Product RangeMQS Series
Technical Datasheet
11,634 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $0.062 |
| 25+ | $0.062 |
| 100+ | $0.057 |
| 250+ | $0.057 |
| 500+ | $0.057 |
| 1000+ | $0.057 |
| 2500+ | $0.053 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$0.06
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTE CONNECTIVITY
Manufacturer Part No5-965906-1
Newark Part No.68AH8388
Product RangeMQS Series
Technical Datasheet
Product RangeMQS Series
Contact GenderSocket
Contact Termination TypeCrimp
Wire Size AWG Max20AWG
Wire Size AWG Min-
For Use WithAMP MQS Series Automotive Housing Connectors
Contact MaterialCopper Nickel Silicon
Contact PlatingTin
SVHCNo SVHC (21-Jan-2025)
Product Overview
5-965906-1 is an MQS series, sealable receptacle with mating tab.
- Feature locking lance
- 180° receptacle style
- Single Wire Seal (SWS) terminal seal type
- F-crimp type
- 7.5A typical current rating
- Stamped & formed contact fabrication
- Uninsulated option
- LV214 compatible with agency/standards products
Technical Specifications
Product Range
MQS Series
Contact Termination Type
Crimp
Wire Size AWG Min
-
Contact Material
Copper Nickel Silicon
SVHC
No SVHC (21-Jan-2025)
Contact Gender
Socket
Wire Size AWG Max
20AWG
For Use With
AMP MQS Series Automotive Housing Connectors
Contact Plating
Tin
Alternatives for 5-965906-1
1 Product Found
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
