BJ79-47
RF / Coaxial Connector, Twinax / Triax Coaxial, Straight Bulkhead Jack, Crimp, 75 ohm
Image is for illustrative purposes only. Please refer to product description.
ManufacturerTROMPETER - CINCH CONNECTIVITY
Manufacturer Part NoBJ79-47
Newark Part No.92B5911
Technical Datasheet
66 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $34.830 |
| 5+ | $34.830 |
| 10+ | $34.830 |
| 25+ | $34.830 |
| 50+ | $34.830 |
Price for:Each
Minimum: 1
Multiple: 1
$34.83
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTROMPETER - CINCH CONNECTIVITY
Manufacturer Part NoBJ79-47
Newark Part No.92B5911
Technical Datasheet
Connector TypeTwinax / Triax Coaxial
Connector Body StyleStraight Bulkhead Jack
Coaxial TerminationCrimp
Impedance75ohm
Coaxial Cable Types-
Contact MaterialBeryllium Copper
Contact PlatingGold Plated Contacts
Frequency Max500MHz
Connector MountingCable Mount
Product Range-
SVHCLead
Product Overview

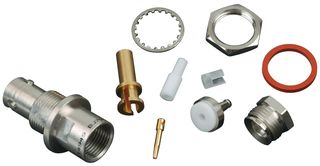

The BJ79-47 is a straight BNC Coaxial Bulkhead Jack with gold-plated beryllium copper contact. It features wrench crimp coaxial termination, twinax/triax impedance and 500MHz maximum frequency. 3-lug for M17/176-00002 cable.
- Nickel-plated brass body
Applications
RF Communications
Technical Specifications
Connector Type
Twinax / Triax Coaxial
Coaxial Termination
Crimp
Coaxial Cable Types
-
Contact Plating
Gold Plated Contacts
Connector Mounting
Cable Mount
SVHC
Lead
Connector Body Style
Straight Bulkhead Jack
Impedance
75ohm
Contact Material
Beryllium Copper
Frequency Max
500MHz
Product Range
-
