B 5131-0
Sensor Connector, Field wireable, M8, Female, 3 Positions, Screw Socket, Straight Cable Mount

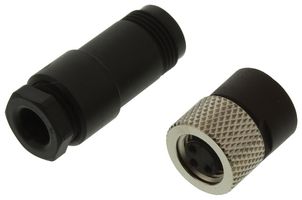

Image is for illustrative purposes only. Please refer to product description.
373 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $23.310 |
Price for:Each
Minimum: 1
Multiple: 1
$23.31
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTURCK
Manufacturer Part NoB 5131-0
Newark Part No.41M2015
Technical Datasheet
Product Range-
Sensor Connector SizeM8
Sensor Connector GenderFemale
No. of Positions3 Positions
No. of Contacts3Contacts
Sensor Contact TypeScrew Socket
Sensor Connector MountingStraight Cable Mount
IP / NEMA RatingIP67
Connector Coding-
Connector Body MaterialNylon (Polyamide) Body
Contact MaterialBrass
Contact PlatingGold
Current Rating4A
Voltage Rating60V
SVHCLead
Product Overview
The B 5131-0 is a 3-contact black female Field Wireable Connector made of PBT body. It accepts 3 to 5mm cable diameter solder terminals. It accepts up to 24AWG conductors 85°C. It mates with 3-pin threaded cordsets and receptacles. It is suitable for use with the sensors.
- 60VAC/75VDC Voltage rating
- 4A Current rating
- IP67 Protection rating
Applications
Industrial
Technical Specifications
Product Range
-
Gender
Receptacle
No. of Positions
3 Positions
Sensor Contact Type
Screw Socket
IP / NEMA Rating
IP67
Connector Body Material
Nylon (Polyamide) Body
Contact Plating
Gold
Voltage Rating
60V
Sensor Connector Size
M8
Sensor Connector Gender
Female
No. of Contacts
3Contacts
Sensor Connector Mounting
Straight Cable Mount
Connector Coding
-
Contact Material
Brass
Current Rating
4A
SVHC
Lead
Technical Docs (3)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
