B 8141-0/PG9
Sensor Connector, Field wireable, M12, Female, 4 Positions, Screw Socket, Straight Cable Mount

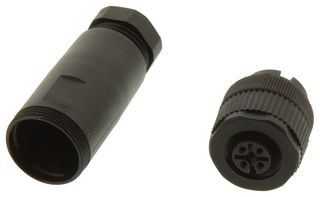

Image is for illustrative purposes only. Please refer to product description.
168 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $26.150 |
Price for:Each
Minimum: 1
Multiple: 1
$26.15
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTURCK
Manufacturer Part NoB 8141-0/PG9
Newark Part No.41M2017
Technical Datasheet
Product Range-
Sensor Connector SizeM12
Sensor Connector GenderFemale
No. of Positions4 Positions
No. of Contacts4Contacts
Sensor Contact TypeScrew Socket
Sensor Connector MountingStraight Cable Mount
IP / NEMA RatingIP67
Connector Coding-
Connector Body MaterialNylon (Polyamide) Body
Contact MaterialBrass
Contact Plating-
Current Rating6A
Voltage Rating250V
SVHCLead
Product Overview
The B 8141-0/PG9 is an eurofast® straight female Field-wireable Connector with black PBT housing. This connector features CuSnZn contacts, nylon coupling nut, PG9 cable gland and screw terminals. Mates with standard key 4-pin cordsets and receptacles. Use with lokfast LOCK-EURO-FW guards in class I, division 2 applications.
- Convert hard wiring to quick disconnect
- Facilities field replacements
- Accepts 4 to 8mm cable
- IP67 Protection rating
- -40 to 85°C Temperature range
Applications
Sensing & Instrumentation
Technical Specifications
Product Range
-
Sensor Connector Gender
Female
No. of Positions
4 Positions
Sensor Contact Type
Screw Socket
IP / NEMA Rating
IP67
Connector Body Material
Nylon (Polyamide) Body
Contact Plating
-
Voltage Rating
250V
Sensor Connector Size
M12
Gender
Receptacle
No. of Contacts
4Contacts
Sensor Connector Mounting
Straight Cable Mount
Connector Coding
-
Contact Material
Brass
Current Rating
6A
SVHC
Lead
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
