079998D-410

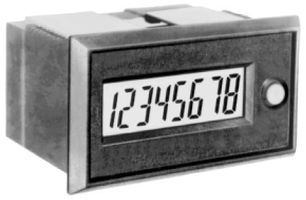

Totalizer, Compact, MITE Series, 8 Digits, Add, Subtract, Battery Powered
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 2 week(s)
| Quantity | Price |
|---|---|
| 1+ | $466.660 |
| 5+ | $452.440 |
| 10+ | $429.810 |
| 25+ | $407.310 |
Price for:Each
Minimum: 1
Multiple: 1
$466.66
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVEEDER ROOT
Manufacturer Part No079998D-410
Newark Part No.01B4029
Technical Datasheet
No. of Digits / Alpha8
Digit Height7mm
Supply Voltage Min-
Supply Voltage Max18VDC
Panel Cutout Height22mm
Panel Cutout Width45mm
Operating Temperature Min-10°C
Operating Temperature Max60°C
Product Range-
SVHCTo Be Advised
Product Overview
The 079998D-410 is a 8-digit Add/Subtract MITE Totalizer with high-speed input for use with logic level voltage, TTL, CMOS open collector NPN transistor. Based on the latest CMOS circuitry, it features a long-life internal power source, high count-speed capability and eight-digit liquid crystal display. The electronic totalizing counter is rated NEMA-4/IP65 for water and dust-proof integrity of their front panels when mounted with the provided gasket. Instant reset to zero is accomplished via its front panel push-button or remote-reset command. For non-reset applications, the panel reset can be disabled.
- Easy-to-read, high contrast liquid crystal display (LCD)
- Quick and easy panel mounting with slide-on clips
- Accessory snap-on adaptors for high voltage count signals
- Small overall size - minimal 1.2" depth behind panel
- 10-year Battery life
- IP65/NEMA-4X Protection rating
Applications
Industrial, Clock & Timing
Contents
Counter and Pre-wired plug-in connector.
Technical Specifications
No. of Digits / Alpha
8
Supply Voltage Min
-
Panel Cutout Height
22mm
Operating Temperature Min
-10°C
Product Range
-
Digit Height
7mm
Supply Voltage Max
18VDC
Panel Cutout Width
45mm
Operating Temperature Max
60°C
SVHC
To Be Advised
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Not applicable
RoHS Phthalates Compliant:Not applicable
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
