NTCLE300E3103SB
Thermistor, NTC, 10 kohm, NTCLE Series, 3977 K, Through Hole, Wire Leaded
Need more?
| Quantity | Price |
|---|---|
| 1+ | $1.310 |
| 10+ | $1.200 |
| 25+ | $1.200 |
| 50+ | $1.200 |
| 100+ | $1.190 |
| 500+ | $1.100 |
| 1000+ | $1.100 |
| 2500+ | $1.100 |
Product Information
Product Overview

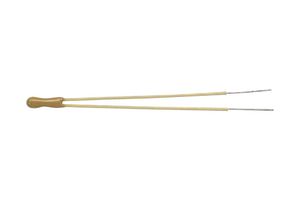

The NTCLE300E3103SB is a 2-pin NTC Thermistor with negative temperature coefficient. The device consists of a mini-chip soldered between two EFTE insulated (LE300) or non-insulated (LE201) nickel leads and coated with a solid ochre epoxy lacquer. This NTCLE series through hole mounting thermistor body is coloured with ochre lacquer and not marked. Long and flexible leads for special mounting or assembly requirements. Suitable for temperature measurement, sensing and control, temperature compensation.
- High stability over a long life
- Small diameter
- 100mW Maximum dissipation
Applications
Test & Measurement, Sensing & Instrumentation, Automation & Process Control, Automotive, Industrial, Consumer Electronics
Technical Specifications
Bead, Radial Leaded
-
NTCLE Series
-
3977K
-
-
30mm
125°C
AEC-Q200
10kohm
± 2.18%
Free Hanging
Wire Leaded
± 0.75%
-
-
-40°C
AEC-Q200
No SVHC (16-Jan-2020)
Associated Products
1 Product Found
Legislation and Environmental
RoHS
RoHS
Product Compliance Certificate
