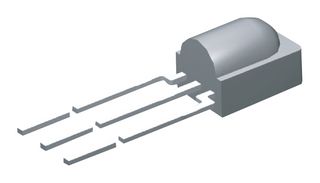

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | VISHAY |
|---|---|
| Manufacturer Part No | TSOP18638Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Newark Part No. | 52AC2324 |
| Product Range | TSOP186 Series |
| Your Part Number | |
| Technical Datasheet |
1 In Stock
Need more?
FREE Standard Delivery
on orders over $150
Available in quantity shown
| Quantity | Price |
|---|---|
| 1+ | $0.667 |
| 10+ | $0.564 |
| 100+ | $0.538 |
| 500+ | $0.488 |
| 1000+ | $0.400 |
| 2500+ | $0.384 |
| 10000+ | $0.371 |
Price for:Each
Minimum: 1
Multiple: 1
$0.67
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | VISHAY |
|---|---|
| Manufacturer Part No | TSOP18638Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Newark Part No. | 52AC2324 |
| Product Range | TSOP186 Series |
| Technical Datasheet | |
| Carrier Frequency | 38kHz |
| IR Receiver Mounting Style | Side View Through Hole |
| Remote Control Code | NEC |
| Transmission Range | 24m |
| Automatic Gain Control (AGC) Type | AGC6 |
| Detection Threshold / Sensitivity | 0.12mW/m² |
| Directivity | 45° |
| Supply Voltage Max | 5.5V |
| Supply Voltage Min | 2.5V |
| Operating Temperature Min | -25°C |
| Operating Temperature Max | 85°C |
| Supply Current | 800µA |
| Product Range | TSOP186 Series |
| SVHC | No SVHC (07-Nov-2024) |
Technical Specifications
| Carrier Frequency | 38kHz |
|---|---|
| Remote Control Code | NEC |
| Automatic Gain Control (AGC) Type | AGC6 |
| Directivity | 45° |
| Supply Voltage Min | 2.5V |
| Operating Temperature Max | 85°C |
| Product Range | TSOP186 Series |
| IR Receiver Mounting Style | Side View Through Hole |
|---|---|
| Transmission Range | 24m |
| Detection Threshold / Sensitivity | 0.12mW/m² |
| Supply Voltage Max | 5.5V |
| Operating Temperature Min | -25°C |
| Supply Current | 800µA |
| SVHC | No SVHC (07-Nov-2024) |
Technical Docs (3)
Legislation and Environmental
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (07-Nov-2024) |
