VS-303CNQ100PBF
Diode Module, 100 V, 300 A, 1.09 V, Dual Common Cathode, TO-244AB, 3 Pins

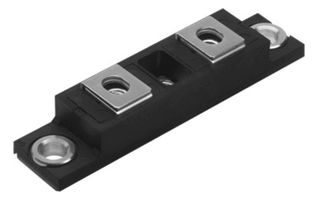

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 12 week(s)
| Quantity | Price |
|---|---|
| 10+ | $47.890 |
| 25+ | $45.140 |
| 50+ | $42.390 |
| 100+ | $40.730 |
Price for:Each
Minimum: 10
Multiple: 10
$478.90
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVISHAY
Manufacturer Part NoVS-303CNQ100PBF
Newark Part No.88K8115
Technical Datasheet
Repetitive Peak Reverse Voltage100V
Average Forward Current300A
Forward Voltage Max1.09V
Diode Module ConfigurationDual Common Cathode
Diode Case StyleTO-244AB
No. of Pins3Pins
Operating Temperature Max175°C
Forward Surge Current22kA
Diode MountingPanel
Product Range-
SVHCNo SVHC (08-Jul-2021)
Technical Specifications
Repetitive Peak Reverse Voltage
100V
Forward Voltage Max
1.09V
Diode Case Style
TO-244AB
Operating Temperature Max
175°C
Diode Mounting
Panel
SVHC
No SVHC (08-Jul-2021)
Average Forward Current
300A
Diode Module Configuration
Dual Common Cathode
No. of Pins
3Pins
Forward Surge Current
22kA
Product Range
-
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (08-Jul-2021)
