2002-1403

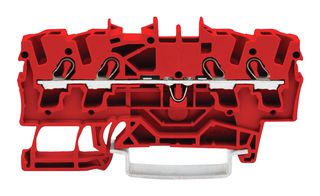

DIN Rail Mount Terminal Block, 4 Positions, 22 AWG, 12 AWG, 2.5 mm², Clamp, 24 A
Image is for illustrative purposes only. Please refer to product description.
ManufacturerWAGO
Manufacturer Part No2002-1403
Newark Part No.51T1808
Product RangeTOPJOB S 2002 Series
Technical Datasheet
335 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $4.650 |
| 25+ | $4.420 |
| 100+ | $4.150 |
| 250+ | $3.930 |
| 500+ | $3.620 |
Price for:Each
Minimum: 1
Multiple: 1
$4.65
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerWAGO
Manufacturer Part No2002-1403
Newark Part No.51T1808
Product RangeTOPJOB S 2002 Series
Technical Datasheet
No. of Positions4Positions
Wire Size AWG Min22AWG
Wire Size AWG Max12AWG
Conductor Area CSA2.5mm²
Wire Connection MethodClamp
Rated Current24A
Rated Voltage800V
No. of Levels1
Product RangeTOPJOB S 2002 Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
2002-1403 is a 4-conductor through terminal block.
- 800V nominal voltage (IEC/EN 60947-7-1)
- 8KV rated surge voltage (IEC/EN 60947-7-1)
- 24A rated current (IEC/EN 60947-7-1)
- Push-in CAGE CLAMP® connection technology
- 0.205inch width, 2.752inch height
- 1.295inch depth from upper-edge of DIN-rail
- DIN-35 rail mounting, red color
- Polyamide (PA66) insulation material
- Continuous operating temperature range from -60 to +105°C
- Suitable for Ex e II applications
Technical Specifications
No. of Positions
4Positions
Wire Size AWG Max
12AWG
Wire Connection Method
Clamp
Rated Voltage
800V
Product Range
TOPJOB S 2002 Series
Wire Size AWG Min
22AWG
Conductor Area CSA
2.5mm²
Rated Current
24A
No. of Levels
1
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
