285-197
DIN Rail Mount Terminal Block, 2 Positions, 4 AWG, 000 AWG, 95 mm², Clamp

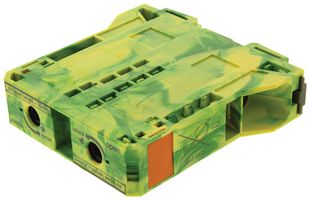

Image is for illustrative purposes only. Please refer to product description.
ManufacturerWAGO
Manufacturer Part No285-197
Newark Part No.29K1427
Product Range285 Series
Also Known AsGTIN UPC EAN: 4045454204372
Technical Datasheet
16 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $69.640 |
| 10+ | $64.720 |
| 25+ | $61.900 |
| 50+ | $53.110 |
Price for:Each
Minimum: 1
Multiple: 1
$69.64
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerWAGO
Manufacturer Part No285-197
Newark Part No.29K1427
Product Range285 Series
Also Known AsGTIN UPC EAN: 4045454204372
Technical Datasheet
No. of Positions2Positions
Wire Size AWG Min4AWG
Wire Size AWG Max000AWG
Conductor Area CSA95mm²
Wire Connection MethodClamp
Rated Current-
Rated Voltage-
No. of Levels1
Product Range285 Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 285-197 from Wago is a 2 conductor ground terminal block with polyamide (PA 6.6) housing material.
- Power CAGE CLAMP connection technology
- Dimension is 25mm x 107mm x 101mm (W x L x H)
- Wire size range from 4AWG to 3/000AWG
- Horizontal design
- Green-yellow colour terminal block
- Side entry wiring
- Weight is 311g
- DIN 35 x 15 carrier rail mounting
- Meets IEC/EN 60947-7-2 standards
Applications
Industrial
Technical Specifications
No. of Positions
2Positions
Wire Size AWG Max
000AWG
Wire Connection Method
Clamp
Rated Voltage
-
Product Range
285 Series
Wire Size AWG Min
4AWG
Conductor Area CSA
95mm²
Rated Current
-
No. of Levels
1
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
