2607011111000
RADIO MODULE, 25KBPS, 169MHZ

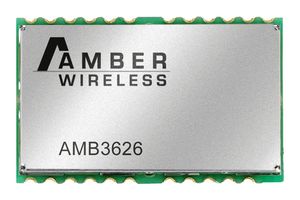

Image is for illustrative purposes only. Please refer to product description.
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No2607011111000
Newark Part No.71AC3826
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 30 week(s)
| Quantity | Price |
|---|---|
| 1+ | $42.840 |
| 10+ | $41.930 |
| 25+ | $41.020 |
| 50+ | $40.110 |
| 100+ | $39.200 |
| 250+ | $37.000 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$42.84
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No2607011111000
Newark Part No.71AC3826
Technical Datasheet
RF Modulation2GFSK, GMSK, 4GFSK
Data Rate Max25Kbps
Frequency Max169MHz
Sensitivity dBm-120dBm
Supply Voltage Min2V
Supply Voltage Max3.6V
Transmit Power-
Module InterfaceUART
Supply Current59mA
RF Transceiver ApplicationsData Acquisition, Monitoring, Sensor Network
Product Range-
SVHCLead (21-Jan-2025)
Technical Specifications
RF Modulation
2GFSK, GMSK, 4GFSK
Frequency Max
169MHz
Supply Voltage Min
2V
Transmit Power
-
Supply Current
59mA
Product Range
-
Data Rate Max
25Kbps
Sensitivity dBm
-120dBm
Supply Voltage Max
3.6V
Module Interface
UART
RF Transceiver Applications
Data Acquisition, Monitoring, Sensor Network
SVHC
Lead (21-Jan-2025)
Technical Docs (3)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Product traceability
