                      MP200703

                      Magnetic Position Sensor, MP2007 Series, SPDT-CO, Threaded Barrel, 3 W, 30 Vac/dc

                      ZF MP200703

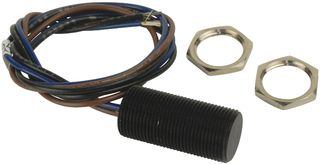

                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerZF
                      Manufacturer Part NoMP200703
                      Newark Part No.05M6406
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      100 In Stock

                      Need more?

                      Same day shipping
                      Order before 9pm EST standard shipping
                      Available in quantity shown
                      QuantityPrice
                      1+$18.220
                      5+$17.770
                      10+$17.310
                      25+$16.940
                      50+$16.580
                      100+$16.230
                      250+$15.860
                      Price for:Each
                      Minimum: 1
                      Multiple: 1
                      $18.22
                      Enter Your Part No/Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerZF
                      Manufacturer Part NoMP200703
                      Newark Part No.05M6406
                      Technical Datasheet

                      Data Sheet

                      Sensing Distance Max12.7mm
                      Sensor MountingCable
                      Supply Current-
                      Operating Temperature Min-40°C
                      Operating Temperature Max105°C
                      Product Range-
                      Sensor HousingCylindrical
                      SVHCNo SVHC (21-Jan-2025)

                      Product Overview

                      The MP200703 is a reed based magnetic Proximity Sensor in aluminum threaded housing. The MP2 series sensor is reed proximity sensor. Normally open or closed contacts change states when a magnetic field is applied. The sensor act as non-latching electrical switches.

                      • SPDT-CO contact
                      • Form C
                      • Contacts hermetically sealed for long life
                      • Zero power consumption
                      • Suitable for DC and AC circuits
                      • Mounting hardware included
                      • IP65 Protection rating

                      Applications

                      Sensing & Instrumentation, Security

                      Technical Specifications

                      Sensing Distance Max

                      12.7mm

                      Supply Current

                      -

                      Operating Temperature Max

                      105°C

                      Sensor Housing

                      Cylindrical

                      Sensor Mounting

                      Cable

                      Operating Temperature Min

                      -40°C

                      Product Range

                      -

                      SVHC

                      No SVHC (21-Jan-2025)
